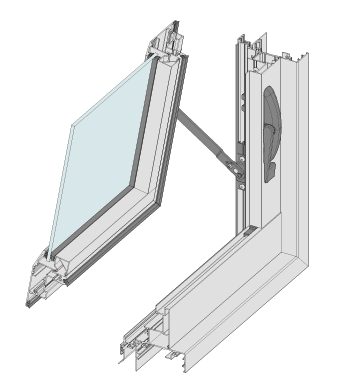

Designer Series | Series 616TRMAGNUM™ Awning/Casement Window

MAGNUM™ Awning/Casement Window
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.14 - 0.56
Uw Range 4.1 - 6.9
AS2047 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The high perfomance awning/casement window has been designed to complement our existing high performance range of Designer Series windows and doors.
  • Designed to accept the Truth™ hardware. This allows us to offer very large casements and awning fitted with scissor type winders with jamb to stile latches that secure the sashes in the closed position.
  • The Truth™ hardware can resist very high negative wind loads with the use of winders and side latches.
  • Low air infiltration, makes the product suitable for air-conditioned buildings.
  • 102mm frames, mullion and transom have a soft 2mm internal radius.
  • On casements it's possible to clean the external glass face when the sash is in the 90° open position.
  • Truth™ awning/casement can be fitted with flyscreens.
