Designer Series ThermalHEART™ | Series 726

Designer Series ThermalHEART™ | Series 726Thermally Broken Awning/Casment/Fixed Window

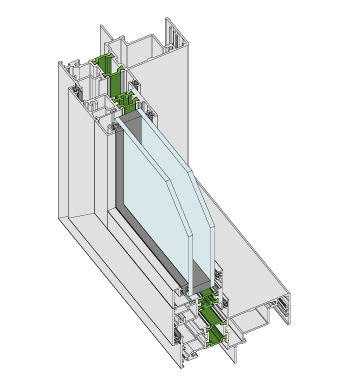

Thermally Broken Awning/Casement Window
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 32mm
SHGC Range 0.13 - 0.47
Uw Range 2.7 - 5.5
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified Cyclone Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

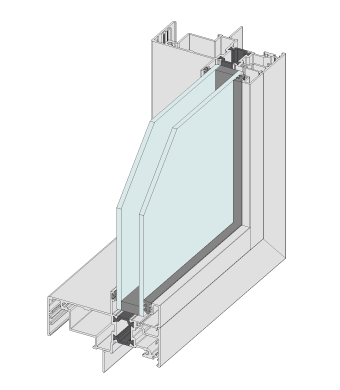

Illustrated: The 726 as a fixed systemSeried 726 Fixed Frame

  • Series 726 can be manufactured as a fixed frame window.
  • Series 726 awning windows incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ awning is 32% more efficient than a standard non-thermally broken awning window.
  • A major advantage with ThermalHEART™ awning windows in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and paint finishes.
  • ThermalHEART™ is also suitable for hot climates – thermally broken windows and doors will help to reduce the airconditioning load in a hot climate.
  • We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™ (Clear anodised exterior and Surfmist powder coat interior).
  • This awning window has been tested for compliance with the relevant Australian Standards and achieved a very high water resistance of 600Pa, this makes this awning window suitable for most applications including multi-storey apartments.
  • Very low air infiltration, makes this awning window suitable for airconditioned buildings.
  • The extra strong sash allows large sash windows to be fabricated for high wind load areas.
  • This awning window system can be fabricated as a fixed window system.
  • NOTE:Casment configuration not suitable for BAL-40 applications.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 726 Awning/Casement

    Series 726 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Thermal Break

      Incorporates multiple thermal breaks to minimise transfer of heat.

      Thermal Break
    • Colour Options

      Available in a range of single or dual colour options.

      Colour Options
    • Glazing

      Will accept single or double glazing up to 32mm IGU.

      Glazing
    • Winder Options

      Manual chainwinders can be fitted with integrated flyscreens.

      Winder Options
  • FEATURED PROJECTS

  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 726 Thermally Broken Awning/Casement Window.

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 726.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 726 but differ in aesthetics and performance.
