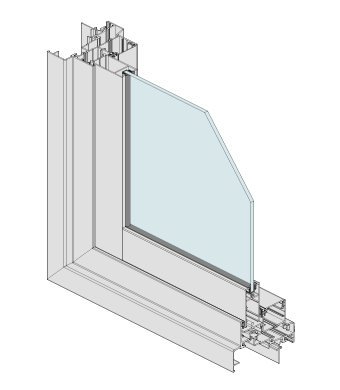

Designer Series | Series 602MAGNUM™ Sliding Window (Double Sash Design)

MAGNUM™ Sliding Window (Double Sash Design)
Maximum Panel Height* 1600mm
Maximum Panel Width* 1356mm
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.23 - 0.63
Uw Range 3.8 - 6.5
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified Cyclone Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The Series 602 sliding window is designed to complement our existing high quality product range.
  • This sliding window has been tested for compliance with the relevant Australian Standards.
  • The Series 602 sliding window achieves very high water resistance of 450Pa making the product suitable for most applications including multi-storey apartments.
  • Low air infiltration, makes this sliding window suitable for air conditioned buildings.
  • The extra strong meeting stiles allow large sliding windows to be fabricated in high wind load areas.
  • Double sash design with the external sash fixed.
  • Frame, mullion and transom on this sliding window have a soft 2mm internal radius.
  • Series 602 sliding window has a more squared off appearance when compared to Series 601.
  • Both fixed and opening sashes on this sliding window can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 602 Sliding Window

    Series 602 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Rollers

      Concealed standard and heavy duty rollers available.
      Rollers
    • Double Sash

      Double sash design
      Double Sash
    • Interlocking Mullion

      Various interlocking mullion options available to suit site wind load conditions.
      Interlocking Mullion
    • Jamb Detail

      Sliding and fixed options maintain visual consistency.
      Jamb Detail
    • Sill Options

      Sill with matching square fixed sidelight.
      Sill Options
    • Screening

      Fully integrated screening option.
      Screening
    • Replacement Trims

      Series 602 will accpet snap on replacement rims for a finished look on retrofits

      Replacement Trims
  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 602 MAGNUM™ Sliding Window (Double Sash Design).

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 602.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 602 but differ in aesthetics and performance.
