Designer Series ThermalHEART™ | Series 726TR

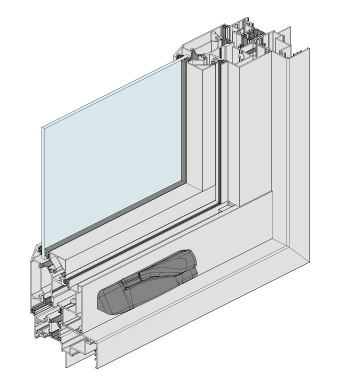

Designer Series ThermalHEART™ | Series 726TRThermally Broken Awning/Casement Window

Thermally Broken Awning/Casement Window
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness 32mm
SHGC Range 0.13 - 0.47
Uw Range 2.7 - 5.5
AS2047 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 726 awning windows is designed to suit Australian building-in conditions. Nailing fins (weather bars), building-in lugs and the PVC still flap assist in installation.
  • Series 726 incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. ThermalHEART™ systems perform up to 32% better than traditional aluminium windows and doors
  • Designed to accept Truth™ hardware. This allows us to offer very large casements and awnings fitted with scissor type winders with jamb to stile latches that secure the sashes in the closed position.
  • The Truth™ hardware can resist high negative wind loads with the use of winders and side latches.
  • The window is compatible (appearance, strength and performance) with the high performance. ThermalHEART™ hinged, sliding and bi-fold foors.
  • ThermalHEART™ will accept insulating glass units up to 32mm thick. The typical IGU thickness is 24mm.
  • Truth™ awning and casement will accept flyscreens.
