Designer Series | Series 601

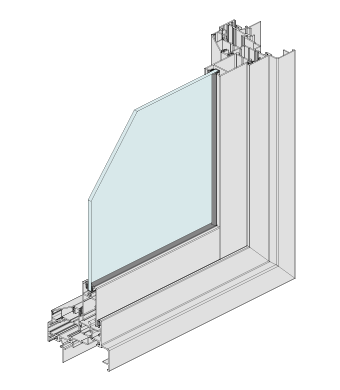

Designer Series | Series 601MAGNUM™ Sliding Window (Beaded Fixed Light)

MAGNUM™ Sliding Window (Beaded Fixed Light)
Maximum Panel Height* 1600mm
Maximum Panel Width* 1350mm
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.23 - 0.63
Uw Range 3.8 - 6.5
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The Series 601 sliding window has been tested for compliance with the relevant Australian Standards and achieved a very high water resistance of 450Pa, making the product suitable for most applications including multi-storey apartments.
  • This sliding window has very low air infiltration, makes the product suitable for air conditioned buildings.
  • The extra strong meeting stiles allow large sliding windows to be fabricated in high wind load areas.
  • Clean splayed and rounded lines for improved visual appearance in these sliding windows.
  • Frame, mullion and transom have a soft 2mm internal radius.
  • Opening sliding window sashes can be fitted with surface or mortice deadlocks.
  • Sashes run on large diameter, heavy duty wheel carriages, including double bogey for very heavy sashes.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 601 Sliding Window

    Series 601 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Rollers

      Concealed standard and heavy duty rollers available.

      Rollers
    • Screening

      Integrated screening option.

      Screening
    • Framing

      Sliding and fixed options maintain visual consistency.

      Framing
    • Interlock Options

      Various interlock options to suit site wind load conditions.

      Interlock Options
    • Splayed External Appearance

      Splayed External Appearance

      Splayed External Appearance
    • Custom Latch

      Custom Latch Secures the Flyscreen to Mullion

      Custom Latch
    • Frame Comparison

      Are Significantly Bolder than Conventional Residential Sliding Windows

      Frame Comparison
    • Splayed Fixed Sidelight

      Jamb with Matching Splayed Fixed Sidelight & building-in lugs

      Splayed Fixed Sidelight
    • Splayed Sill

      Sill with Matching Splayed Fixed Sidelight

      Splayed Sill
    • Sill Internal View

      Sill Internal View with matching fixed sidelight

      Sill Internal View
    • Replacement Trims

      Sereies 601 will accept snap on replacement trims for a finished look on retrofits

      Replacement Trims
  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 601 MAGNUM™ Sliding Window (Beaded Fixed Light).

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 601.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 601 but differ in aesthetics and performance.
