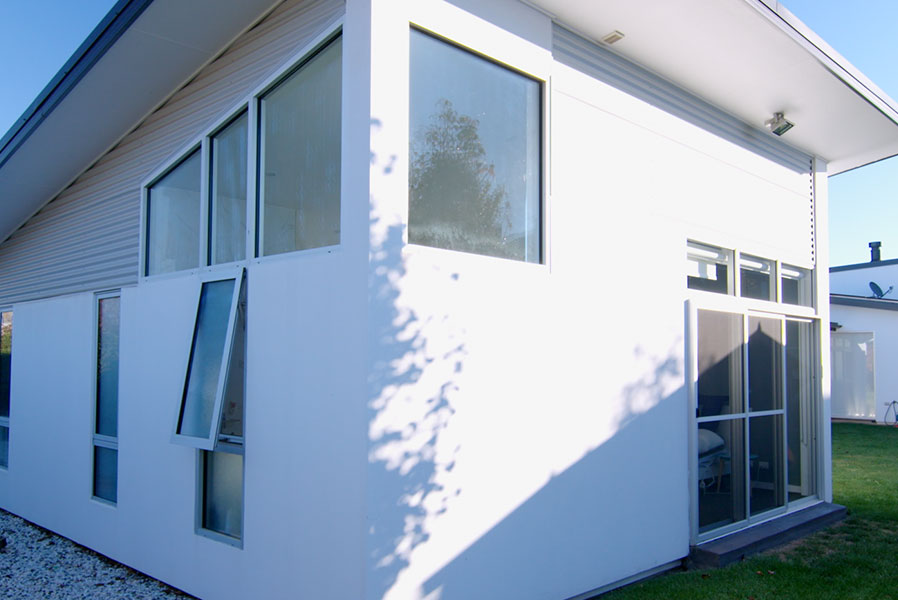

Architectural Awning / Casement Window
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.14 - 0.57
Uw Range 4.2 - 7
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • This 102mm thick commercial grade awning window has been designed with bold frame lines and thick (strong) sashes that can carry heavy glass including 24mm thick double glazing.
  • The perimeter frame has been designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • Splayed or square glazing beads available.
  • Awning sashes can be fitted with cam handles, manual chain winders or concealed electric winders. The winder options suit fixed flyscreen installation.
  • Sashes are hung on heavy duty four-bar stainless steel or aluminium stays.
  • Sashes will accept a variety of glass thicknesses from 4mm single panes to 24mm insulating glass units.
  • Two non-facing (recessed) sash designs cover internal and external glazing.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 466 Awning/Casement

    Series 466 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Operation

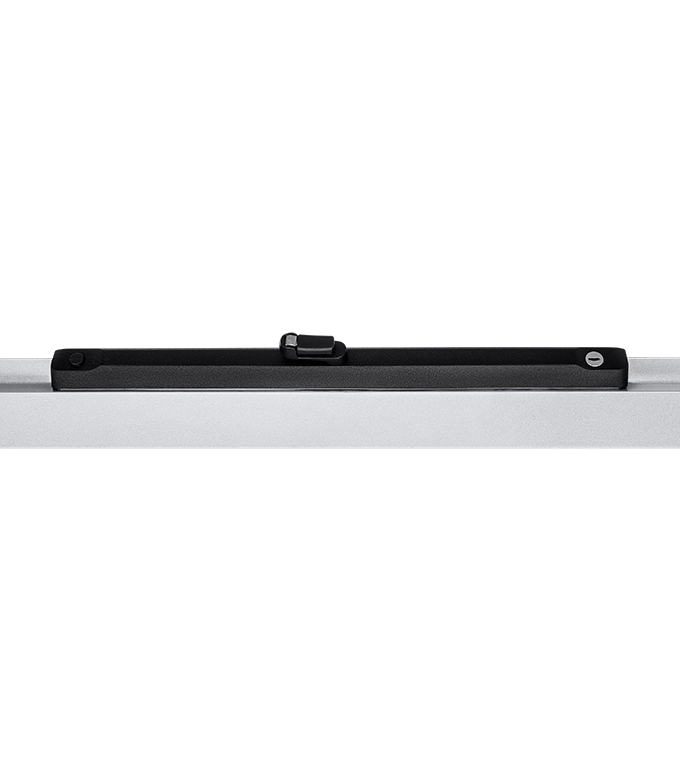

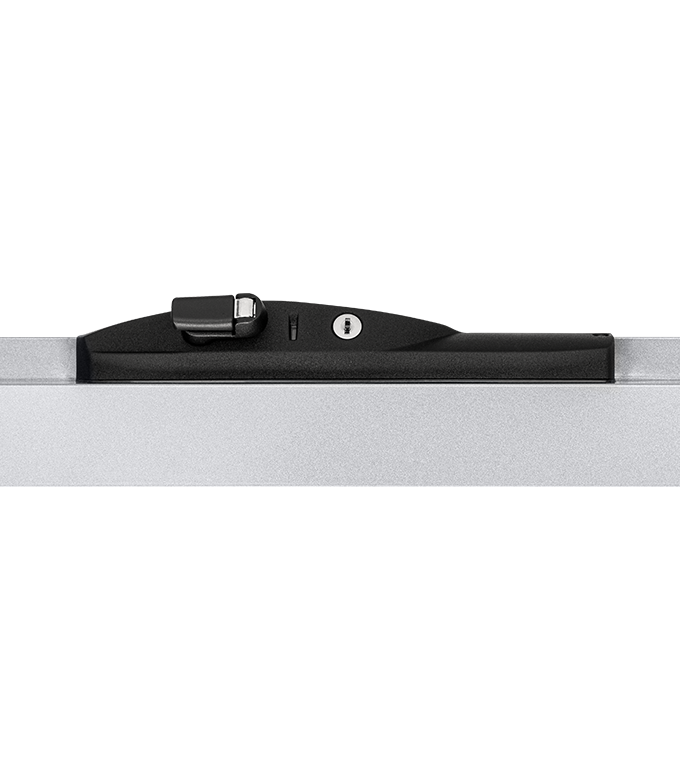

      466 manual chainwinder comes standard with stainless chain, body can be coloured to match.
