Designer Series ThermalHEART™ | Series 730

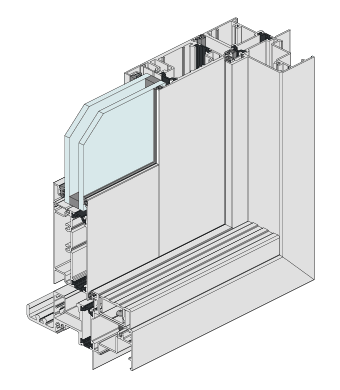

Designer Series ThermalHEART™ | Series 730Thermally Broken Bi-fold Door

Thermally Broken Bi-fold Door
Maximum Panel Height* 2600mm
Maximum Panel Width* 900mm
Maximum Glass Thickness ≤ 32mm
SHGC Range 0.13 - 0.46
Uw Range 2.5 - 5.2
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 730 bi-fold door incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ Bi-fold door is 32% more efficient than a standard non-thermally broken Bi-fold door.
  • A major advantage with ThermalHEART™ bi-fold doors in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and paint finishes. ThermalHEART™ is also suitable for hot climates.
  • We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™, contact your local Vantage fabricator for details.
  • Running bi-fold doors on bottom rollers reduces the problems caused by lintel sag and allows us to offer optional highlights.
  • This bi-fold door has been tested for compliance with the relevant Australian Standards and achieved a high water resistance of 380Pa. This makes the product suitable for most residential applications.
  • Low air infiltration, makes this bi-fold door suitable for airconditioned buildings.
  • The extra strong door stiles on this bi-fold door allow oversize door panels to be fabricated.
  • Sharp square external glazing beads are standard on this bi-fold door product.
  • 100mm frame and transom have a soft 2mm internal radius.
  • Series 730 bi-fold doors will accept Centor™ S1 screen.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 730 Bi-fold Door

    Series 730 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Sill Options

      Recessed and fully recessed sill options available.
      Sill Options
    • Bottom Rollers

      Heavy duty bottom rollers colour matched or stainless steel.
      Bottom Rollers
    • Screening

      Integrated Centor™ S1 retractable flyscreen available.
      Screening
    • Screen Sill Detail

      Flush threshold incorporating Centor™ S1 retractable flyscreen.
      Screen Sill Detail
    • Floor Channels

      Ability to incorporate floor channels for Bi-fold and screen.
      Floor Channels
    • Internal Trim

      Jambs can be concealed using internal wall linings.
      Internal Trim

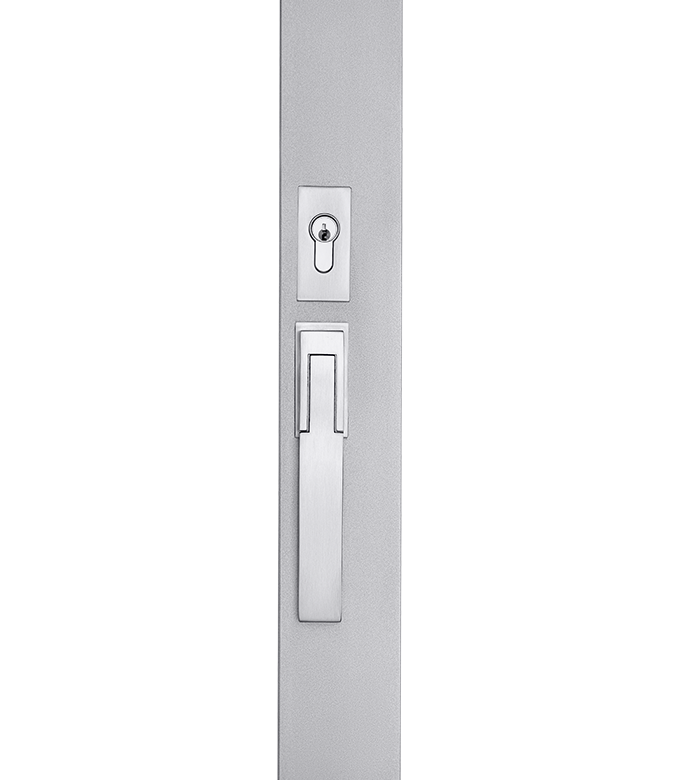

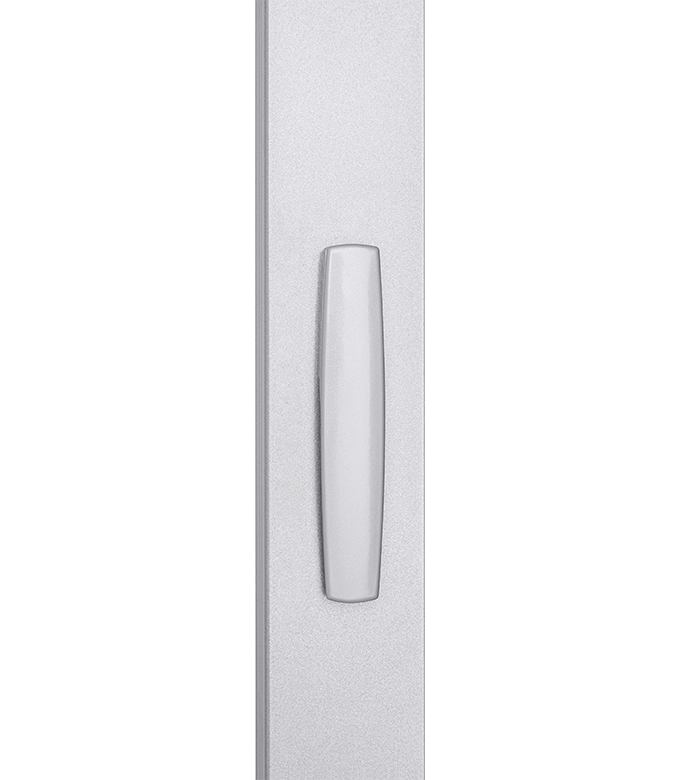

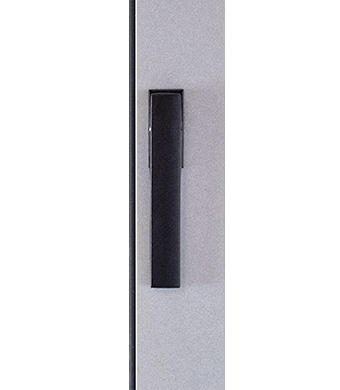

  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 730 Thermally Broken Bi-fold Door.

  • COMPLEMENTARY PRODUCTS

    AWS complementary product options designed for use with Series 730 Thermally Broken Bi-fold Door.

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 730.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 730 but differ in aesthetics and performance.
