Architectural Series | Series 701

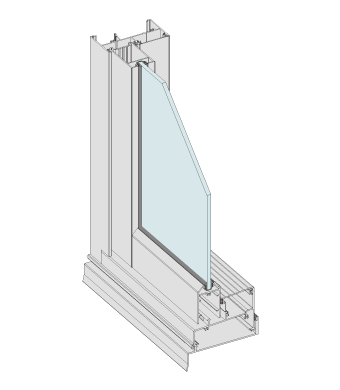

Architectural Series | Series 701SlideMASTER™ Sliding Window

SlideMASTER™ Sliding Window
Maximum Panel Height* 1600mm
Maximum Panel Width* 1500mm
Maximum Glass Thickness ≤ 24mm
AS2047 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Architectural Sliding window with external sliding sash.
  • Clean lines for improved visual appearance.
  • There is a large variety of window combinations possible (SF, FS, SFS, FSF or FSSF).
  • The window is compatible with the high performance Series 406 FrontGLAZE™ and Series 407 FaceLINE™ framing.
  • The head and jamb sections have an additional weather leg to ensure that junctions between sliders and fixed sidelights/highlights maintain the high water resistance.
  • Sliders fitted with mortice lock.
  • Sashes run on heavy duty double bogey wheel carriages.
  • Threshold and snap-in flat filler ensure that the clean looks are maintained.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 701 SlideMASTER™ Sliding Window.

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 701.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 701 but differ in aesthetics and performance.
