Commercial Framing | Series 624

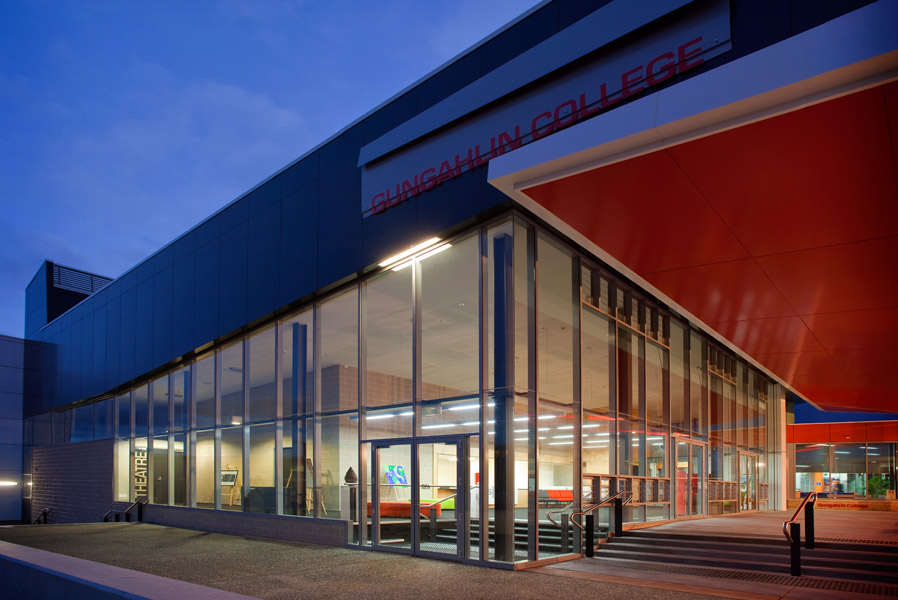

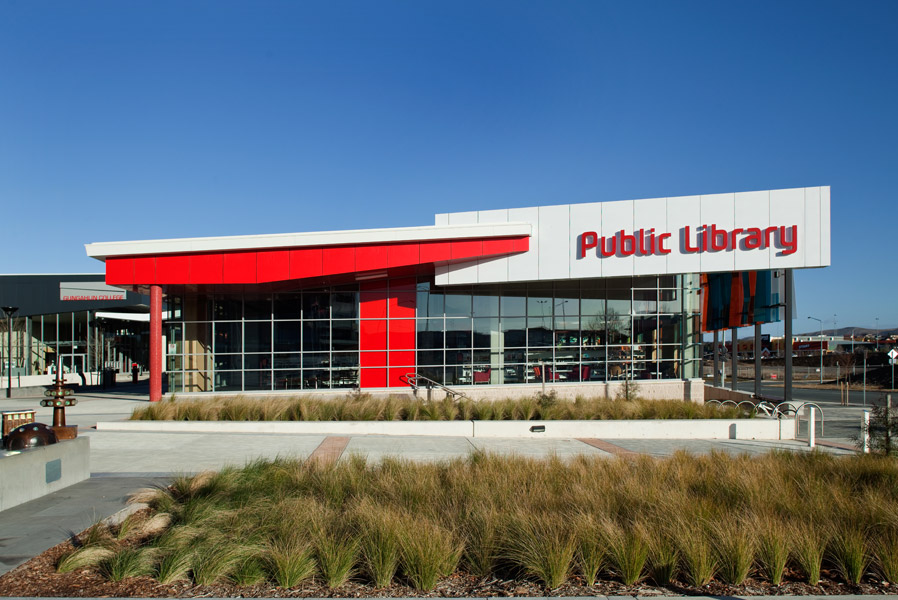

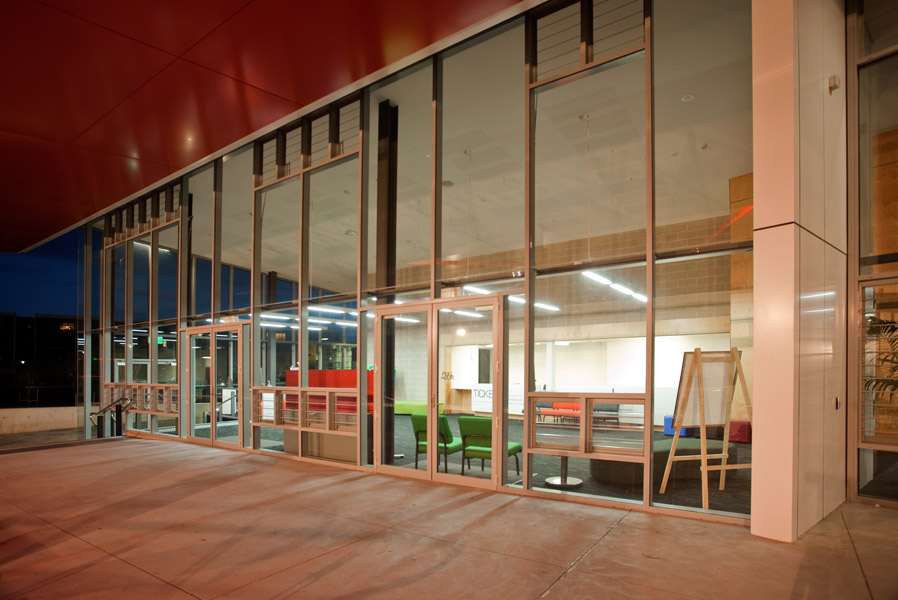

Commercial Framing | Series 624Double Glazed Centre Glazed 150mm Framing

Double Glazed Centre Glazed 150mm Framing
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.22 - 0.65
Uw Range 2.9 - 3.8
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
  • Compatible with a large range of other Elevate™ framing systems, including sliding doors.
  • Snap together and interlocking expansion mullions.
  • Matching 50mm thick hinged, pivot or sliding door; each designed to accept 24mm thick double glazing and a large variety of industry standard hardware.
  • Two fully beaded midrail sizes to choose from (125mm and 200mm deep).
  • Concealed overhead transom also designed to accept 24mm IGUs.
  • We can insert awning sashes into the framing - if required. These sashes will also accept 24mm IGUs

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 624 CentreGLAZE™

    Series 624 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Beading

      Sill beads are reinforced for extra strength and security.
      Beading
    • Captive Wedges

      Can accept both captive and roll-in wedges for the ease of site glazing.
      Captive Wedges
    • Sub-Sill

      Specifically designed sub-sill with central support leg.
      Sub-Sill
    • Sub-Jamb

      Sub-jambs and sub-heads designed for easy installation.
      Sub-Jamb
    • Support

      Central leg supports the ever increasing weights of insulated glass units.
      Support
    • Matching Door

      We have a matching heavy duty, 50mm thick door designed to accept 24mm IGUs.
      Matching Door
  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 624.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 624 but differ in aesthetics and performance.
