Commercial Framing | Series 400

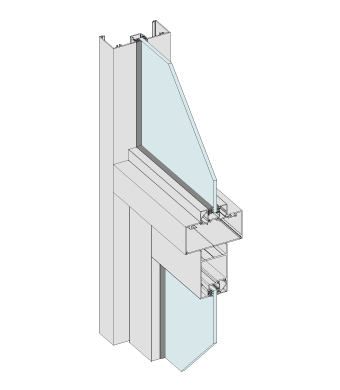

Commercial Framing | Series 400Single Glazed Centre Glazed 102mm Framing

Single Glazed Centre Glazed 102mm Framing
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 10.38mm
SHGC Range 0.25 - 0.61
Uw Range 6 - 4.1
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 400 CentreGLAZE™ shopfront framing - 102mm frame for single glazed applications.
  • True captive glazing wedge allows reglazing from inside - ideal in elevated applications.
  • The captive wedge also offers increased security.
  • Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
  • Sub-head and two piece sub-jambs.
  • Numerous door thresholds including weather resisting thresholds for external and internal swing doors.
  • Accepts louvre blades, top hung and bottom rolling sliding door track systems.
  • Snap together corners including 135º.
  • Designed for use with Series 50, 51 and 52 commercial doors.
  • Compatible with Commercial and Architectural Series systems.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 400 CentreGLAZE™

    Series 400 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Hinged Doors

      Accepts a variety of hinged doors to suit your application.
      Hinged Doors
    • Adaptability

      Series 400 framing is the building block of commercial applications.
      Adaptability
    • Sliding Doors

      Can accept sliding door panels in a variety of commercial applications.
      Sliding Doors
    • Thresholds

      Variety of thresholds to suit your hinged door applications.
      Thresholds
    • Numerous Frame Options

      We offer frames to suit all strength and installation requirements.
      Numerous Frame Options
    • Secure Fixing

      Heavy door panel hinges can be fitted with concealed backing plates.
      Secure Fixing

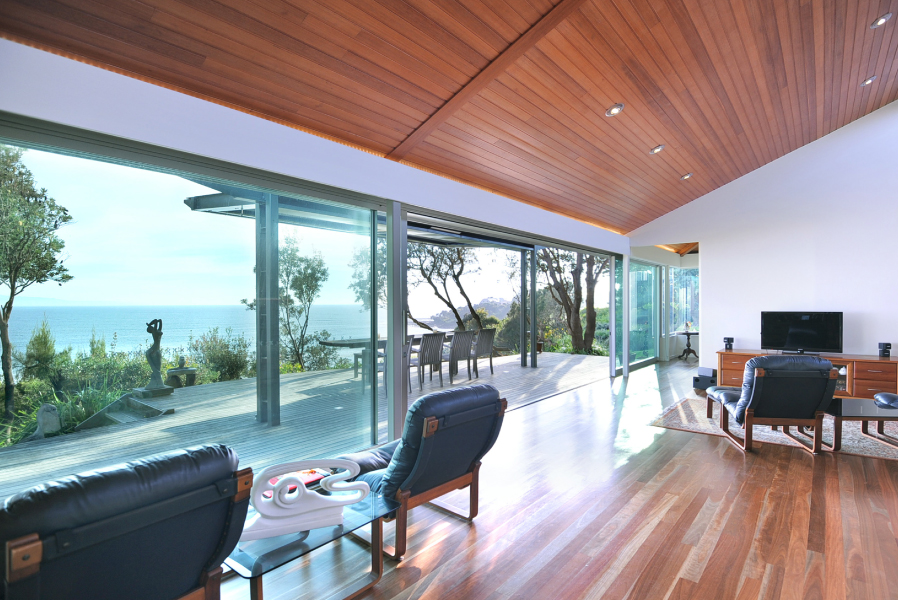

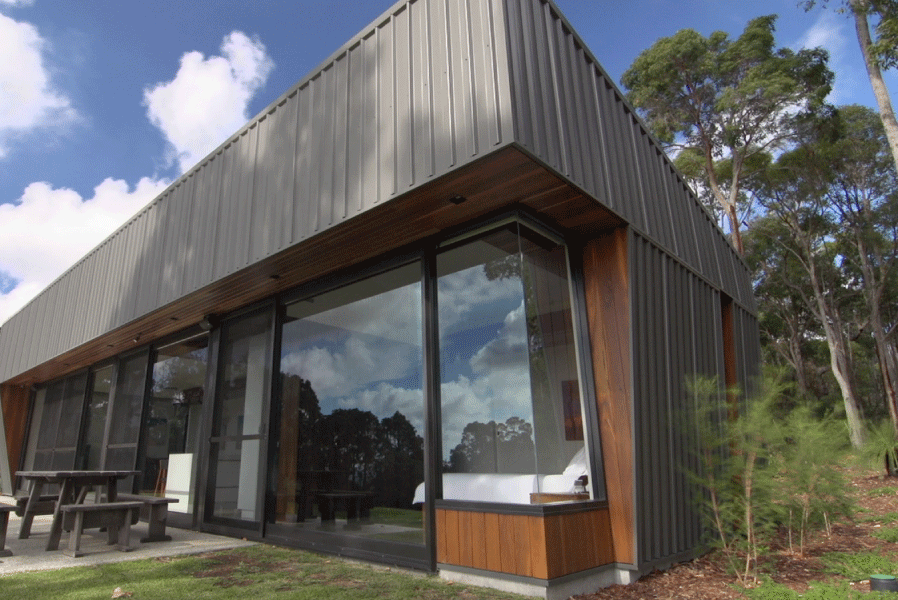

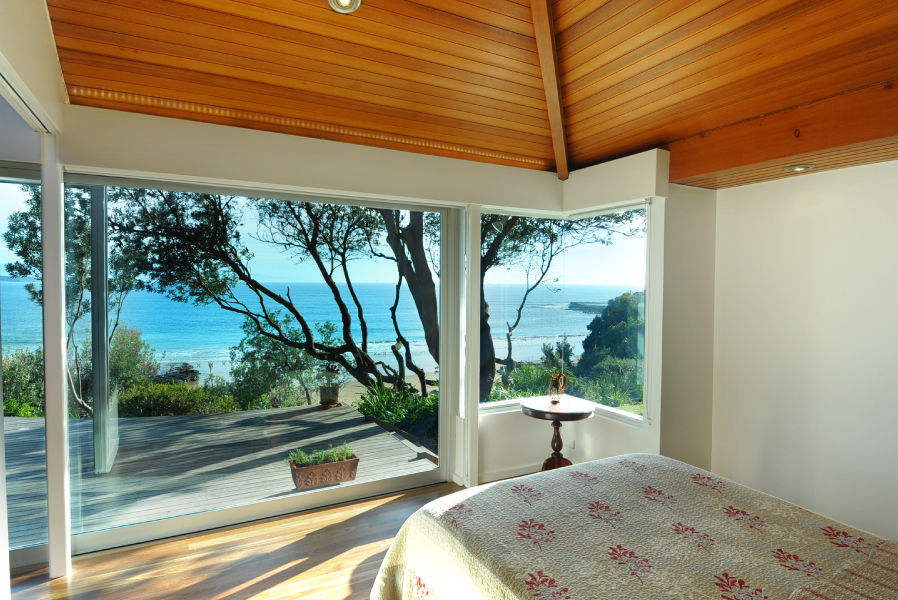

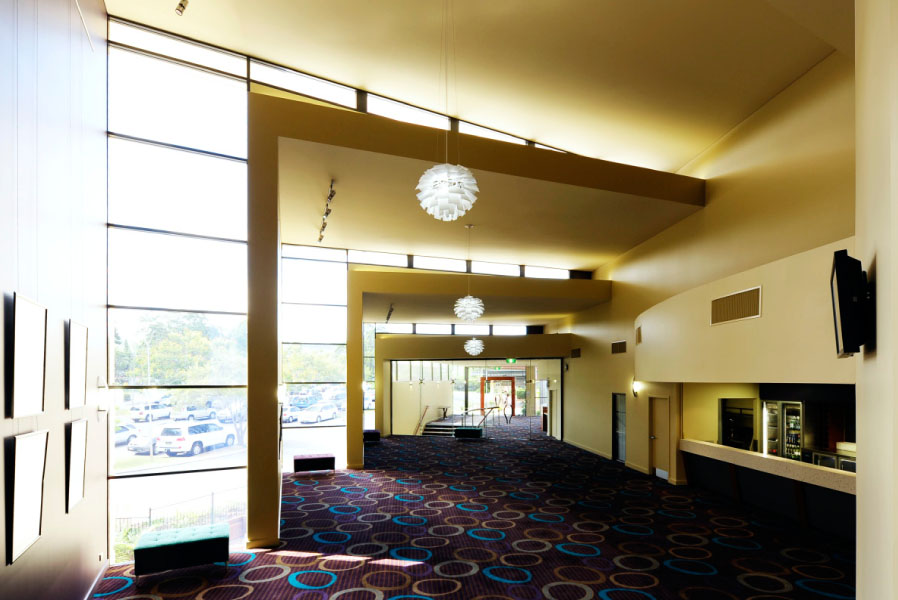

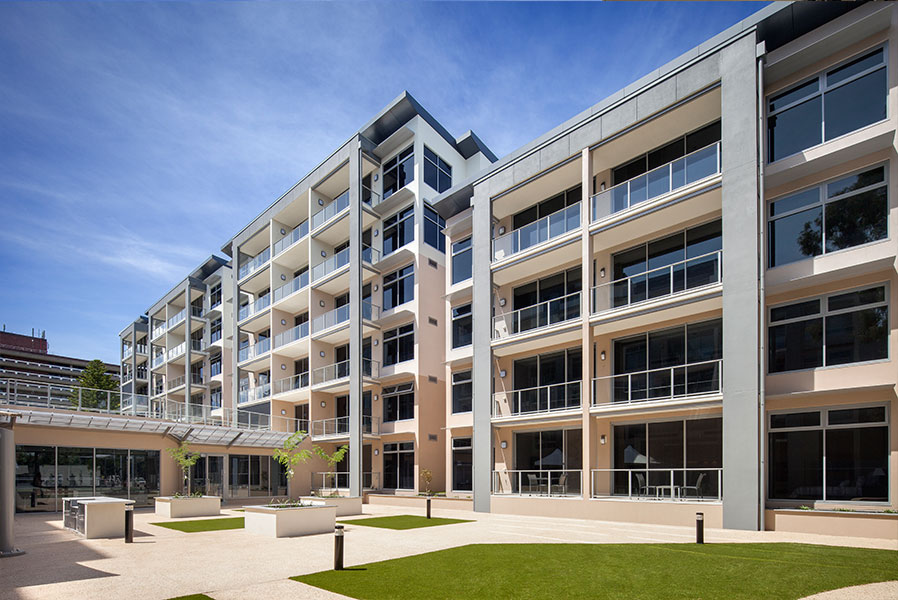

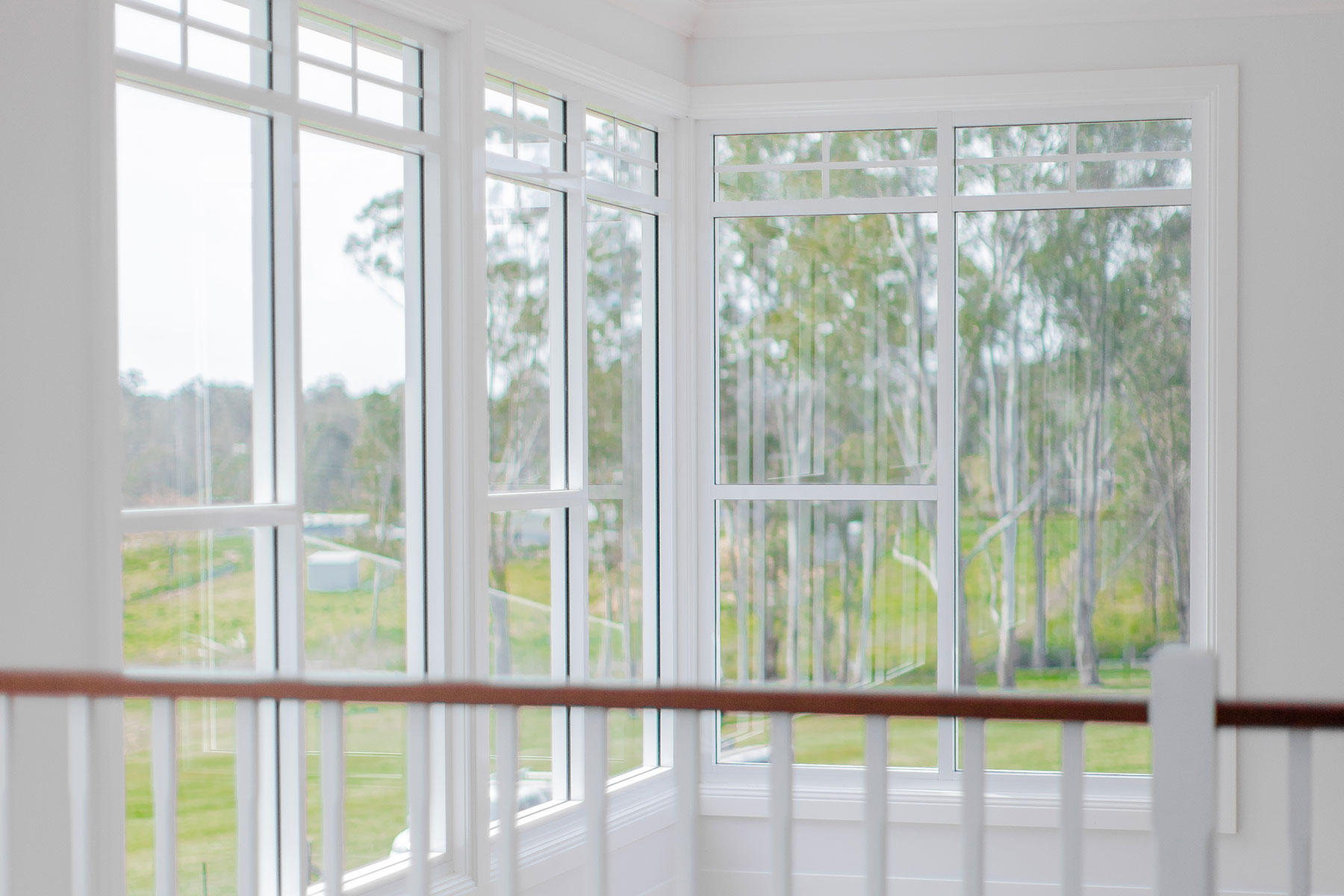

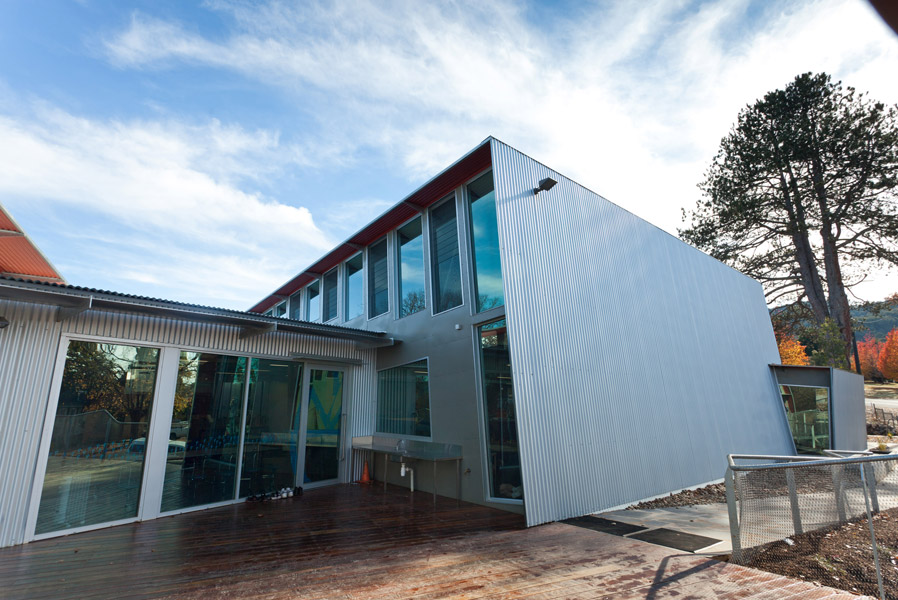

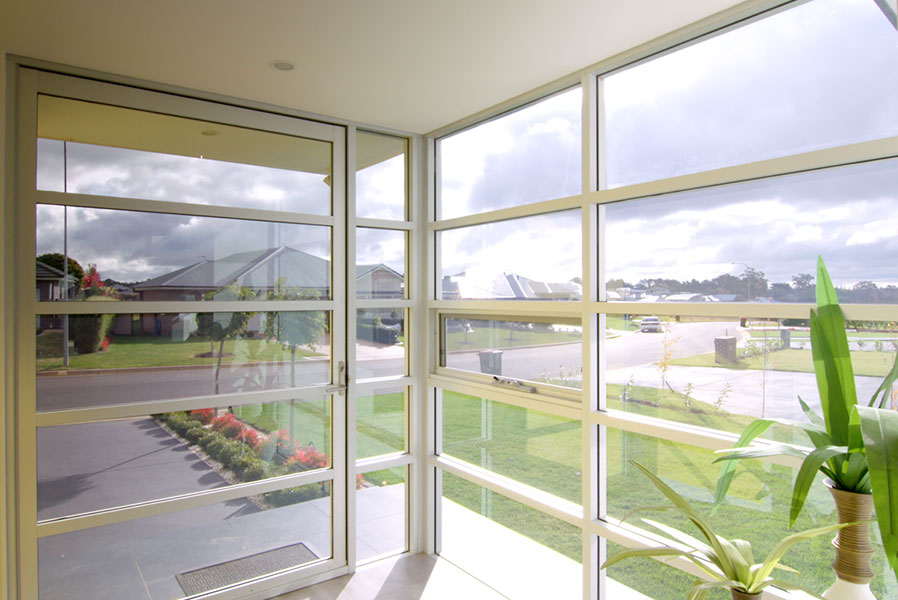

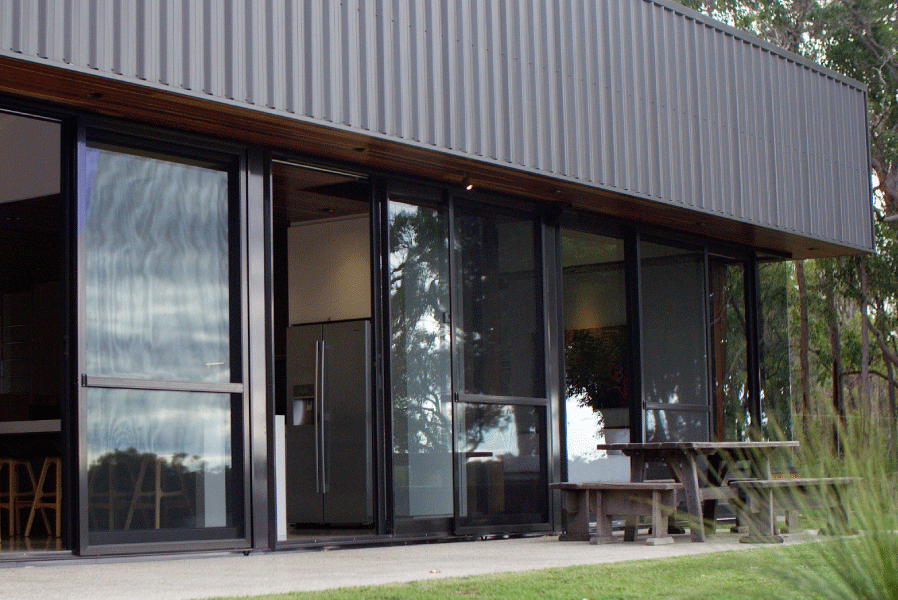

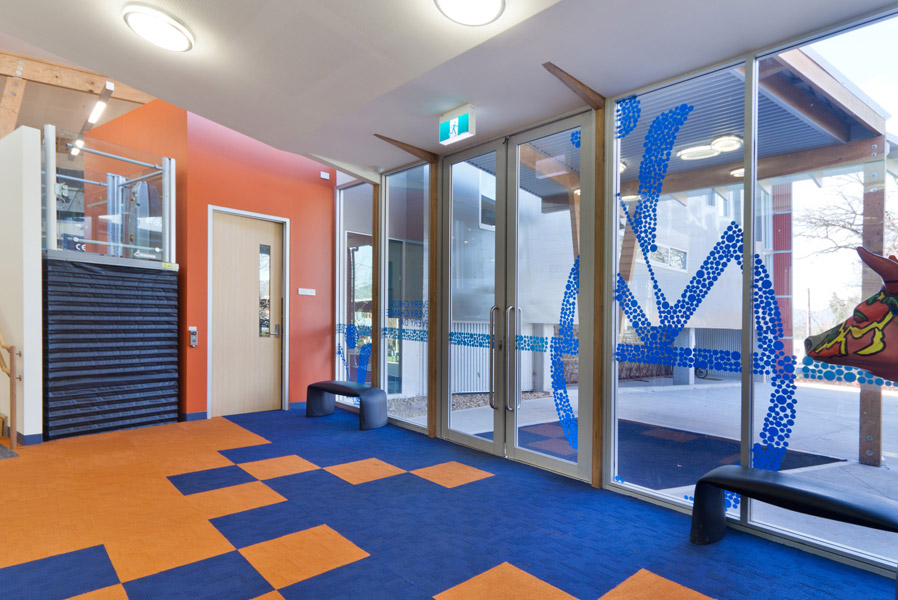

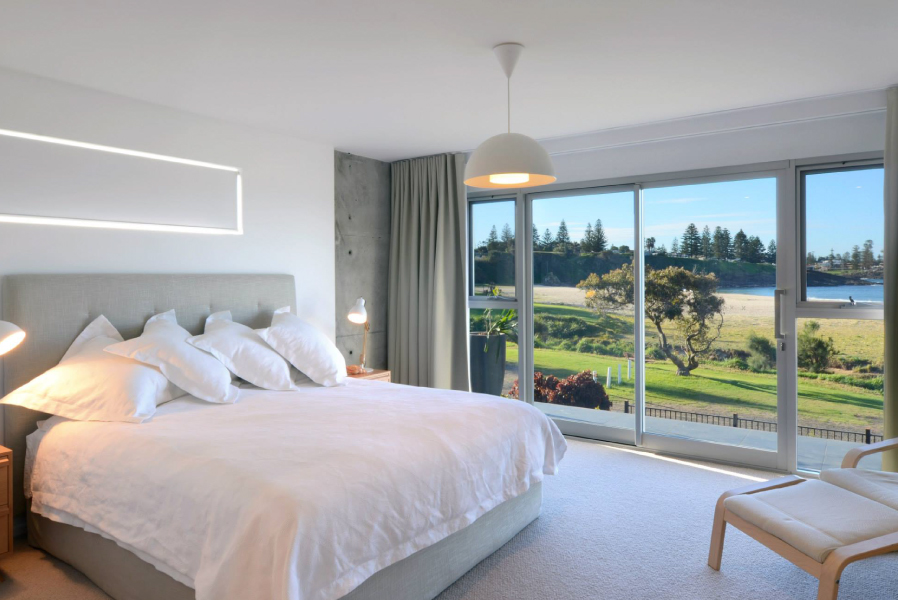

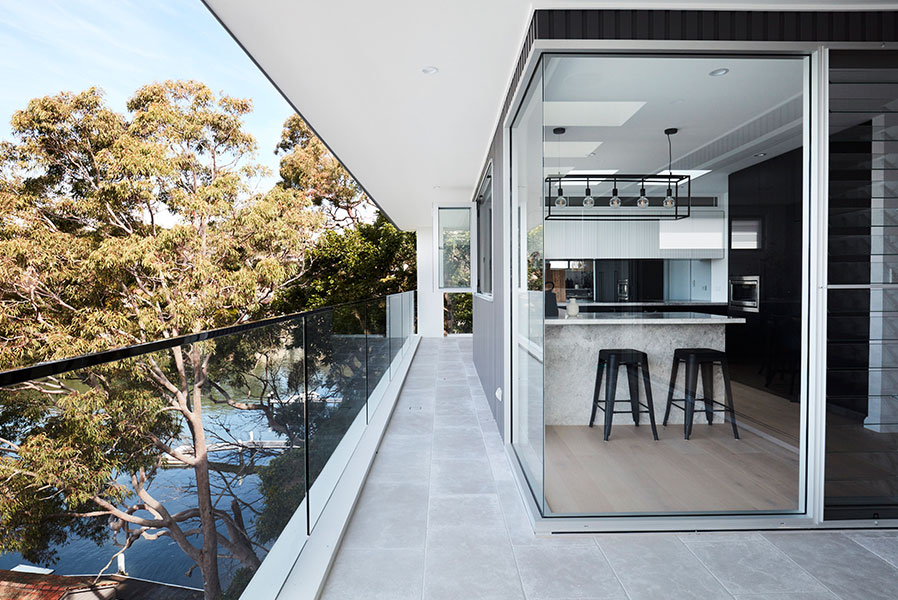

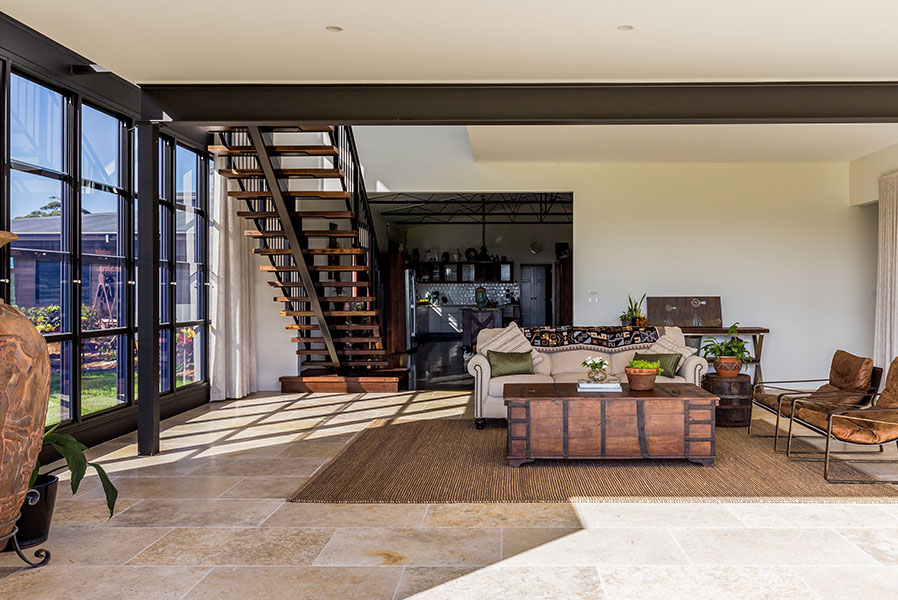

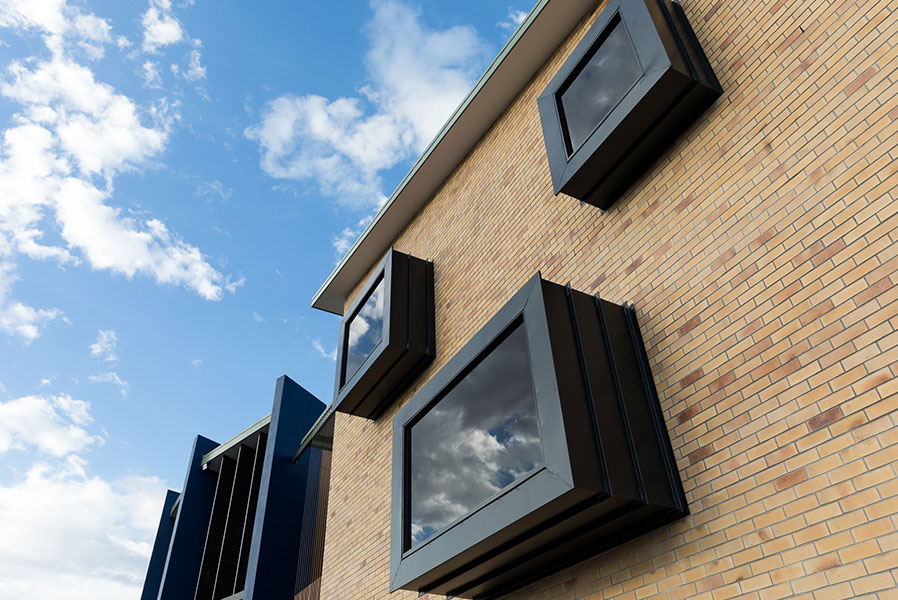

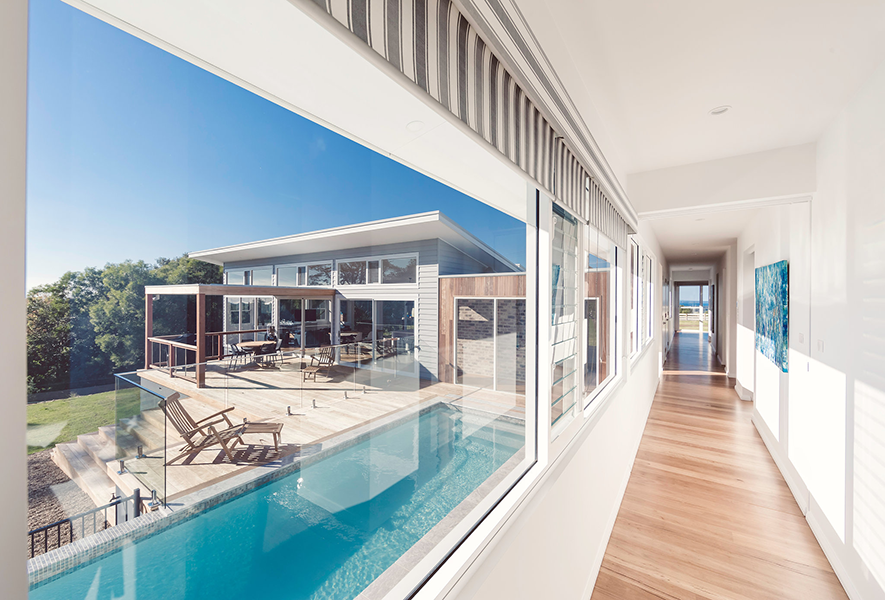

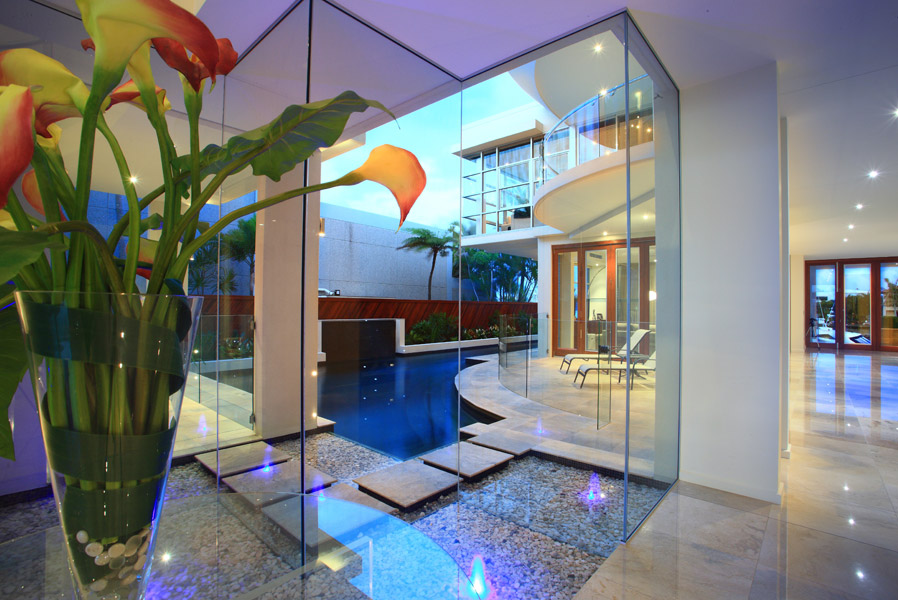

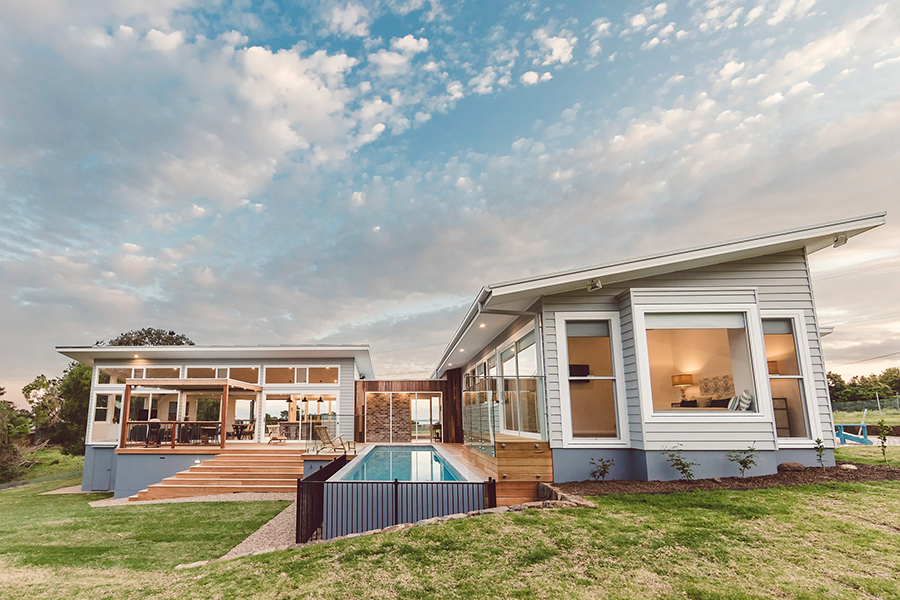

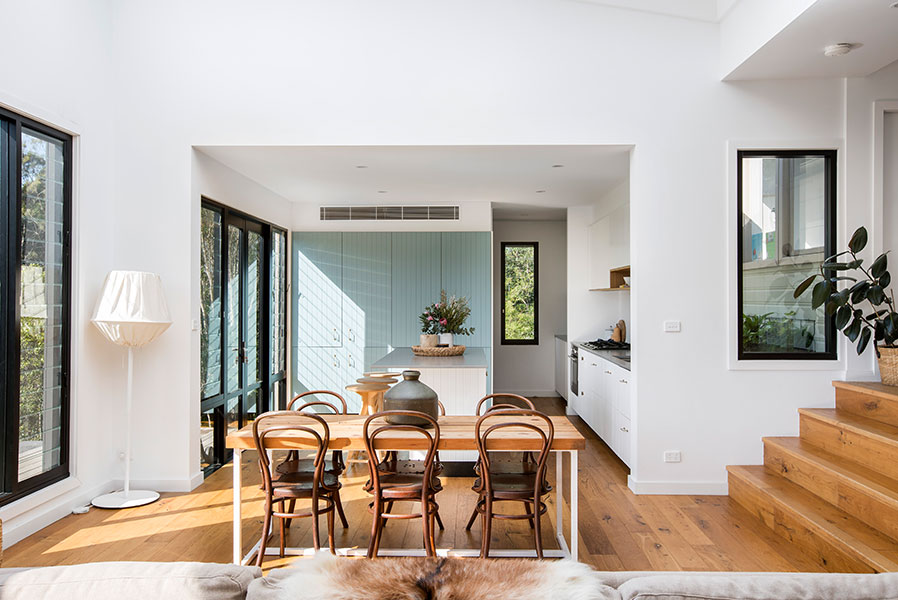

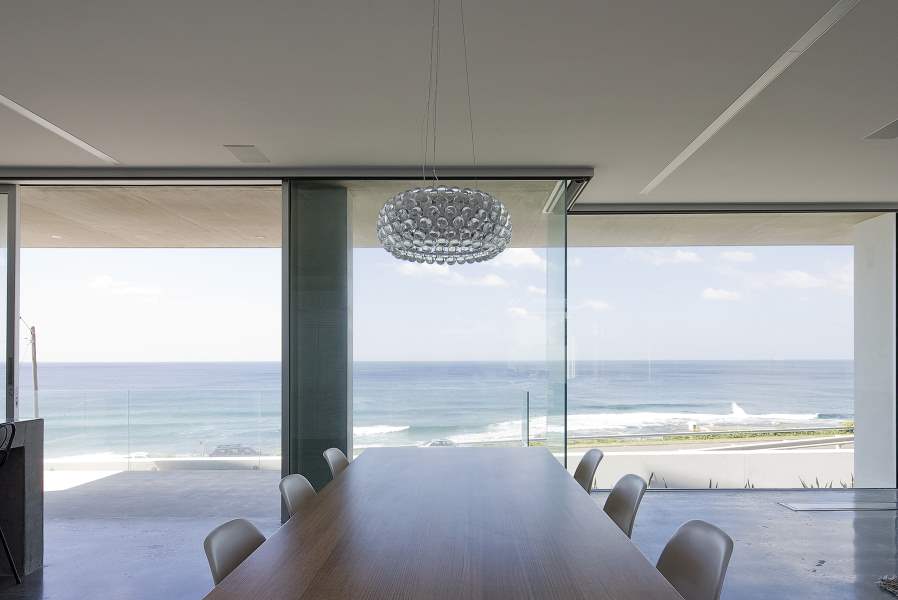

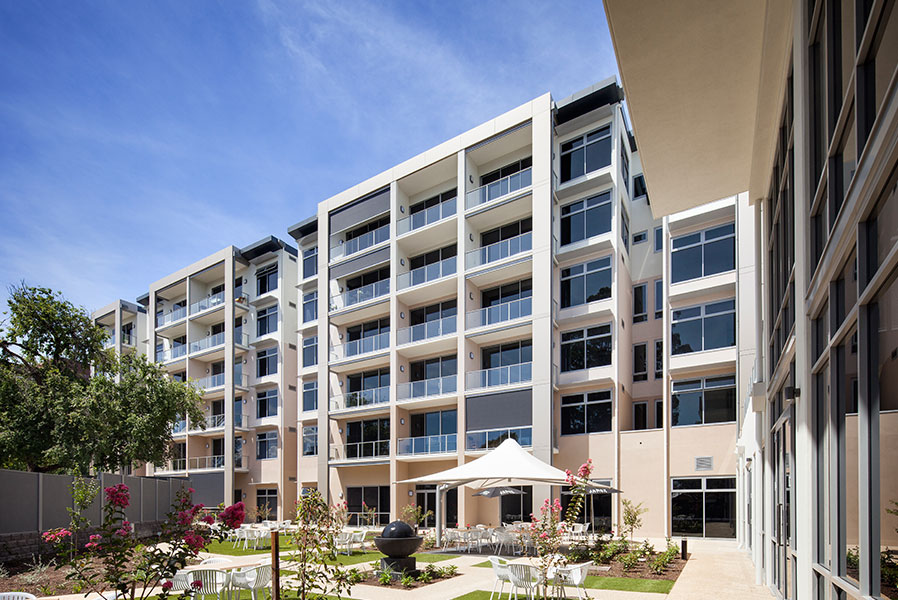

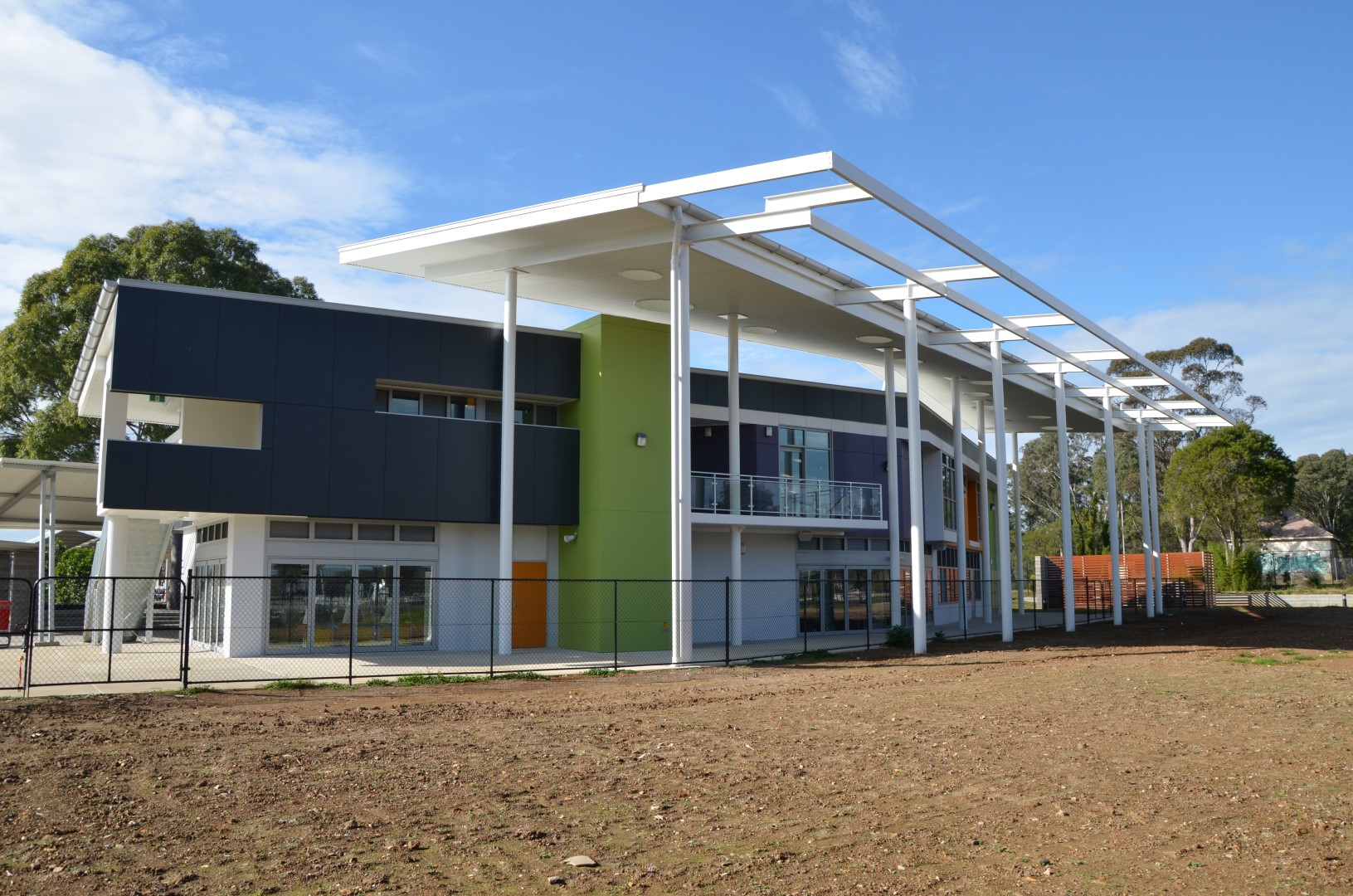

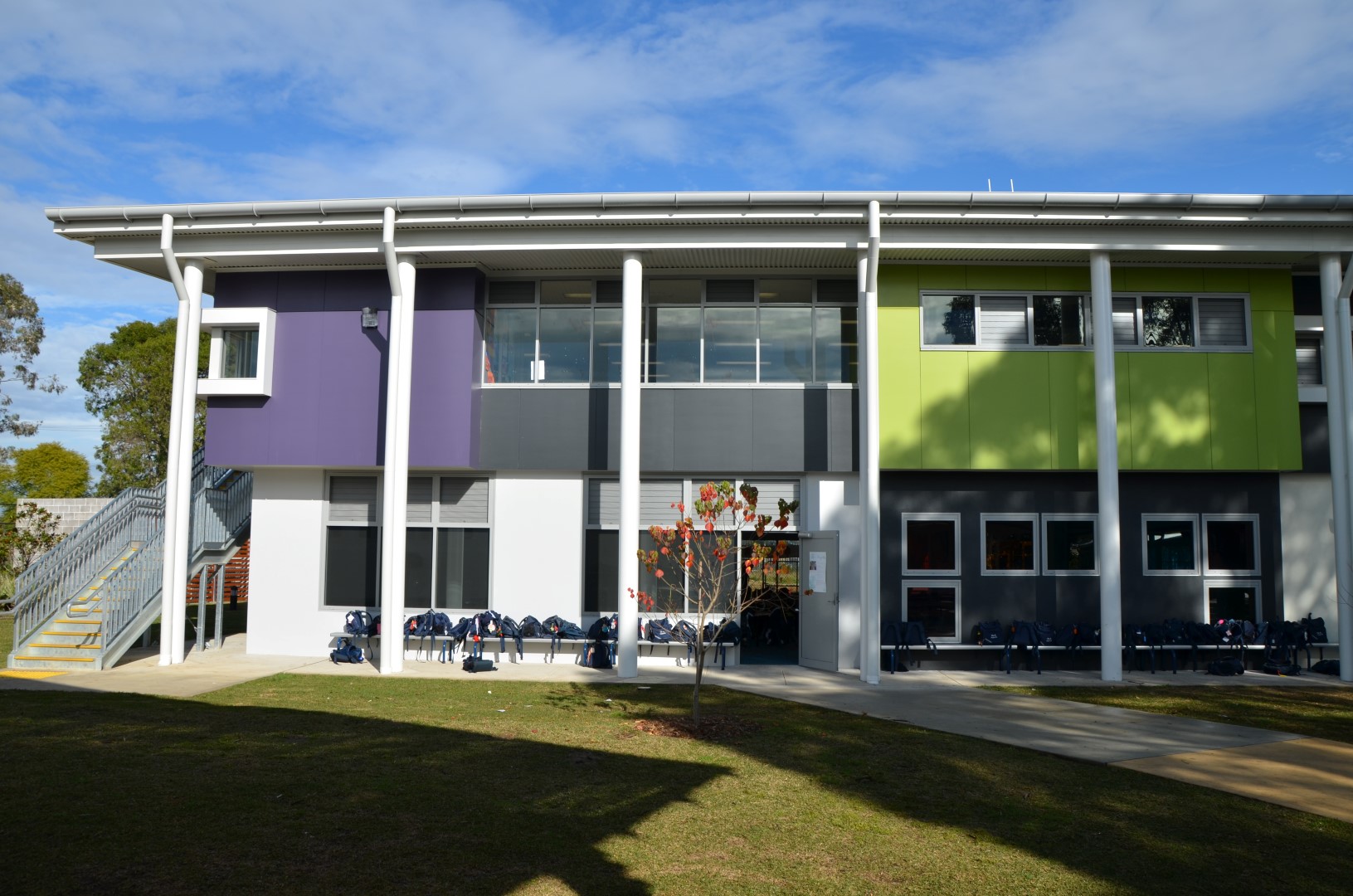

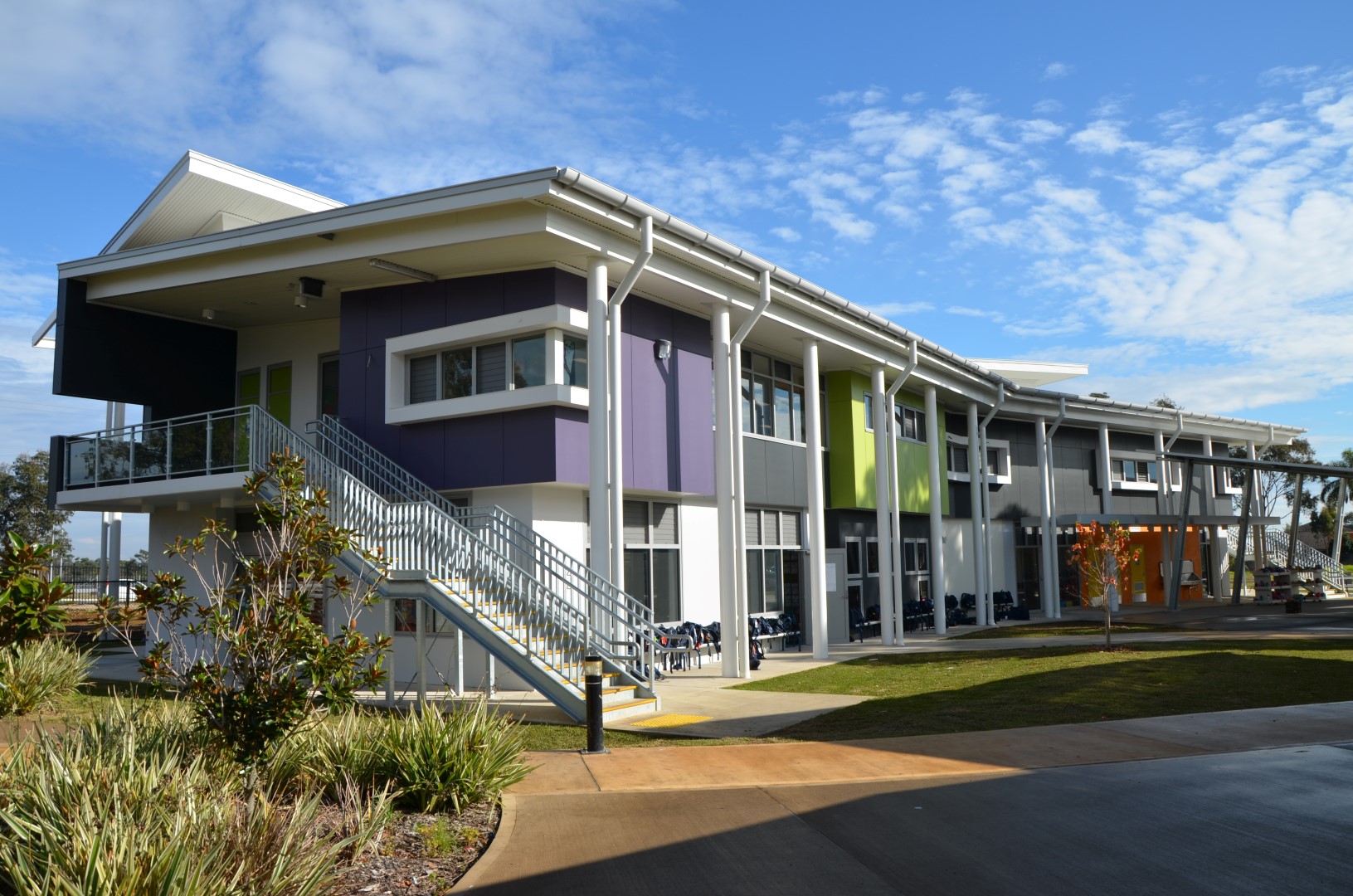

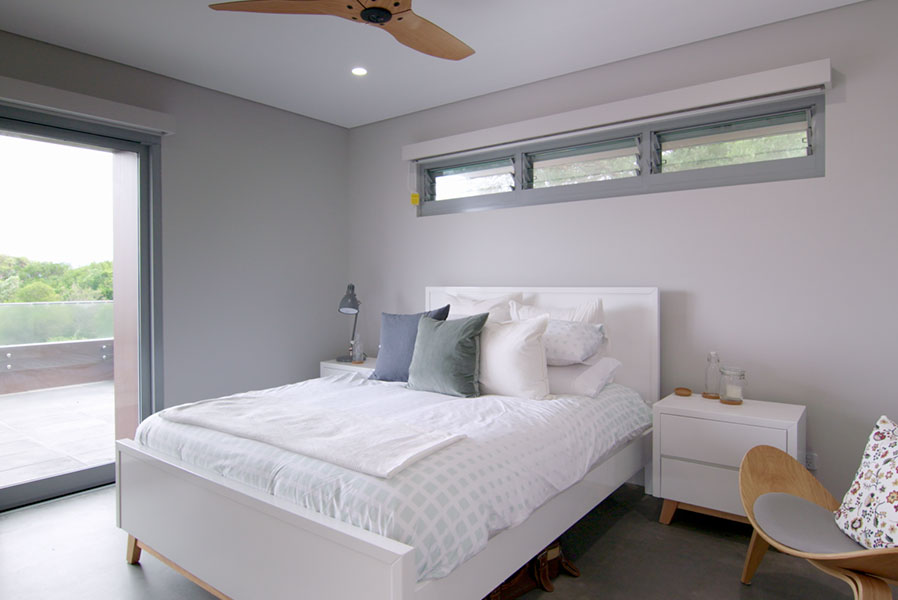

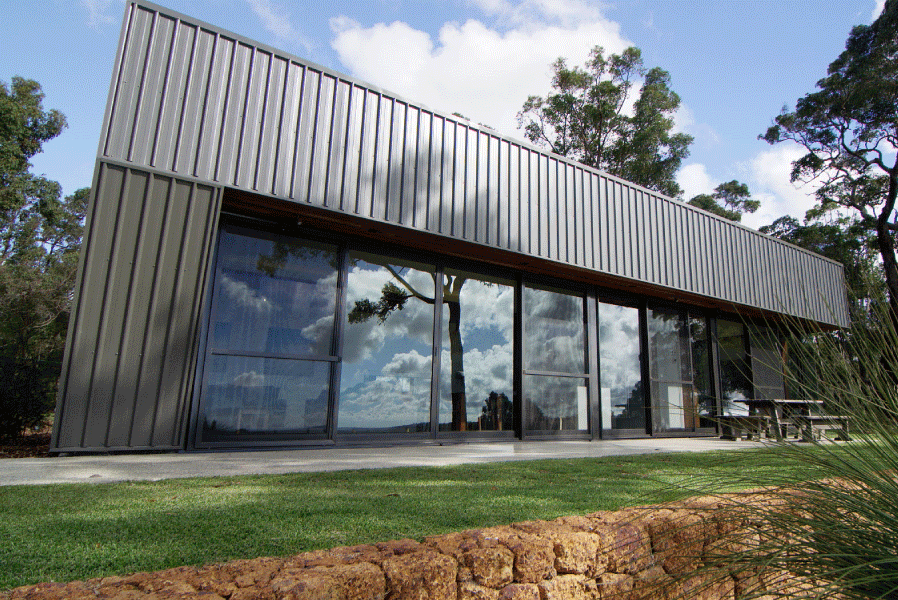

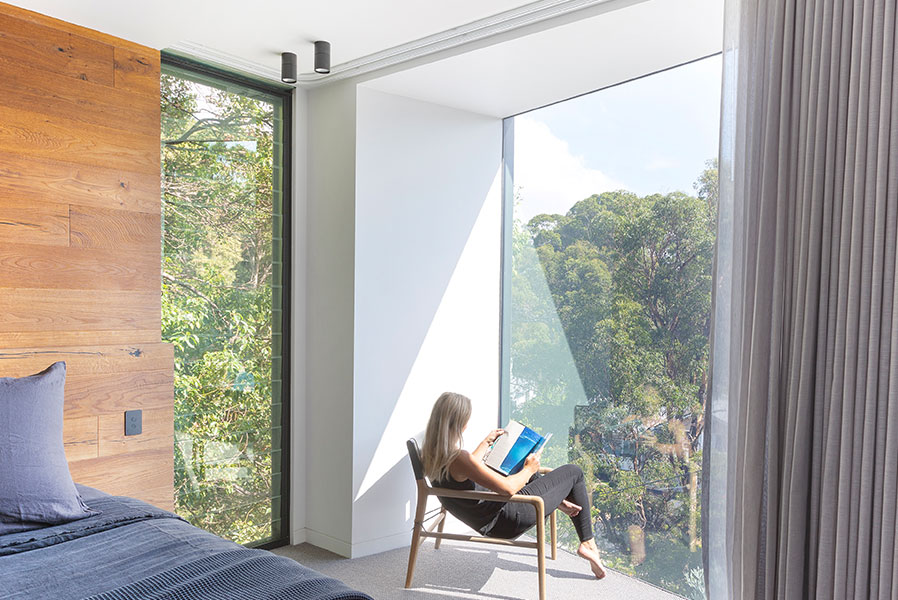

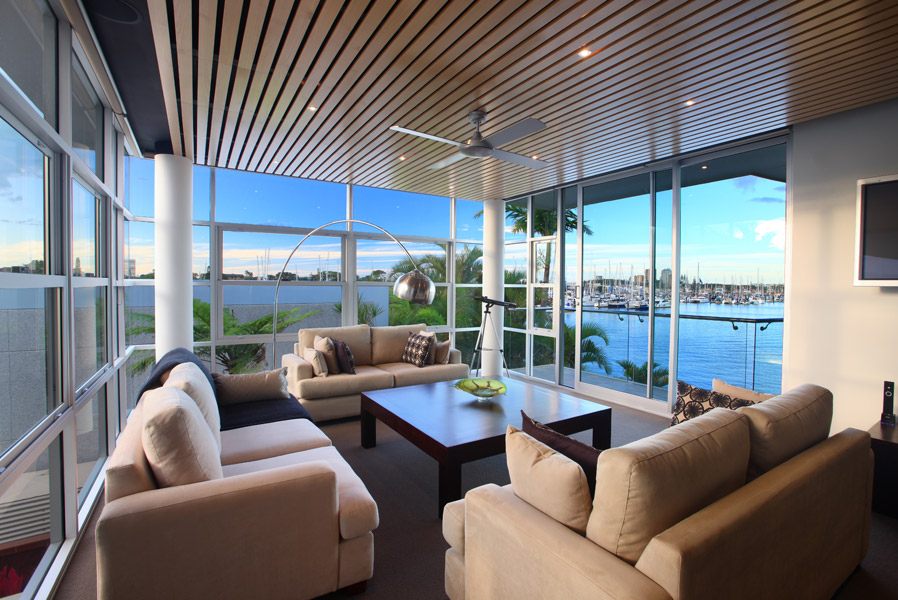

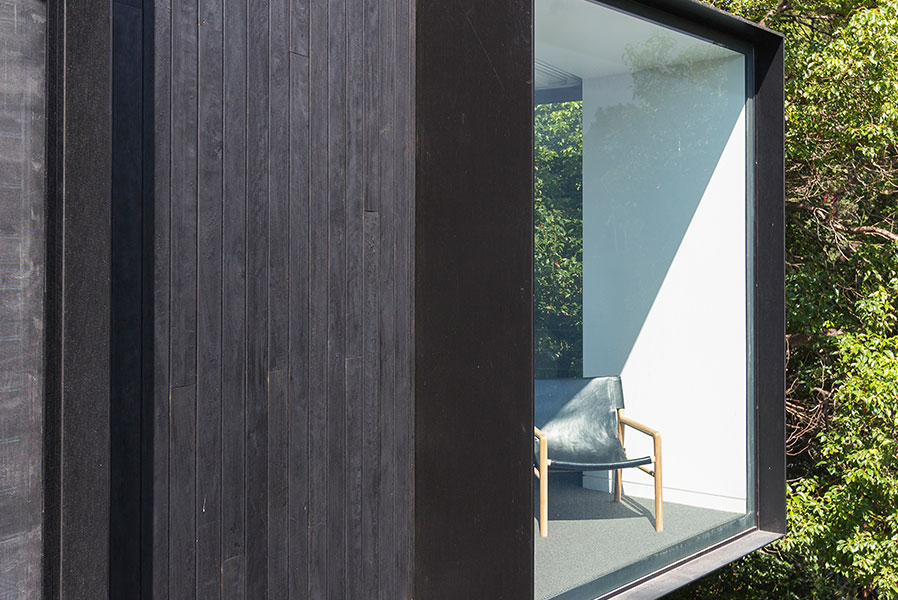

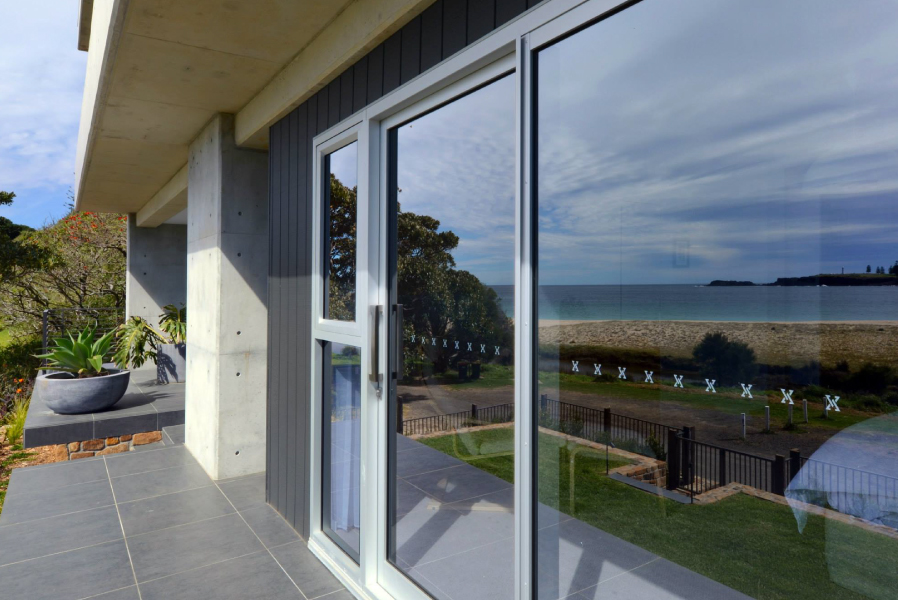

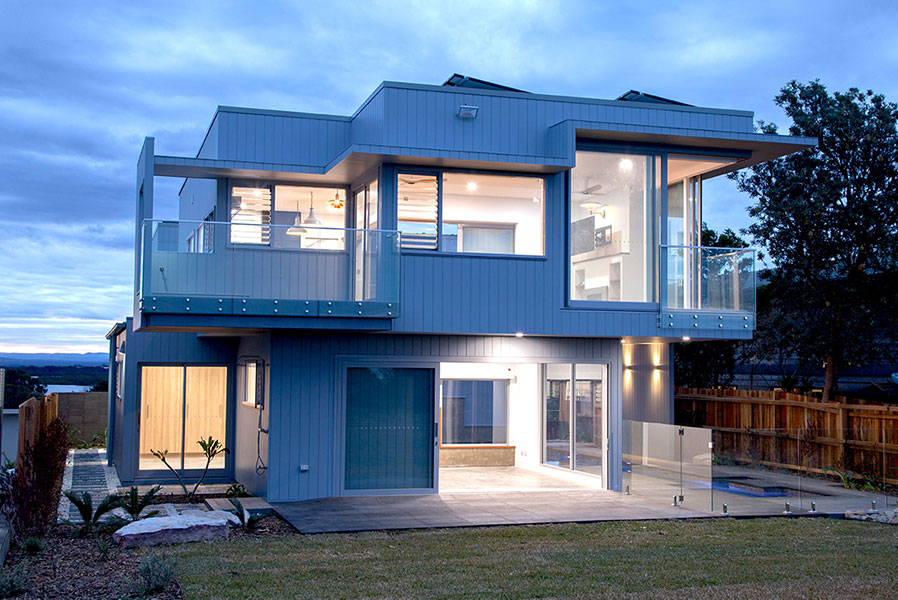

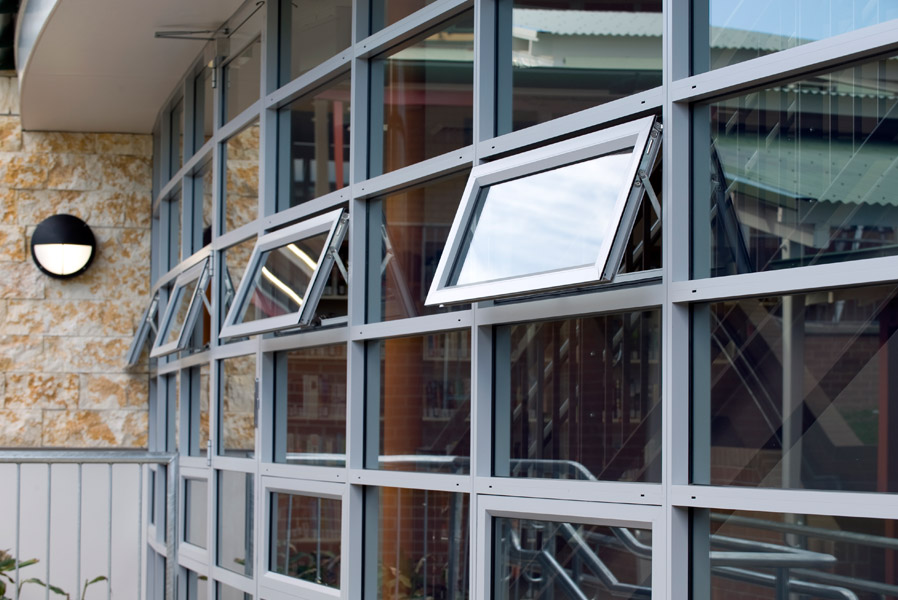

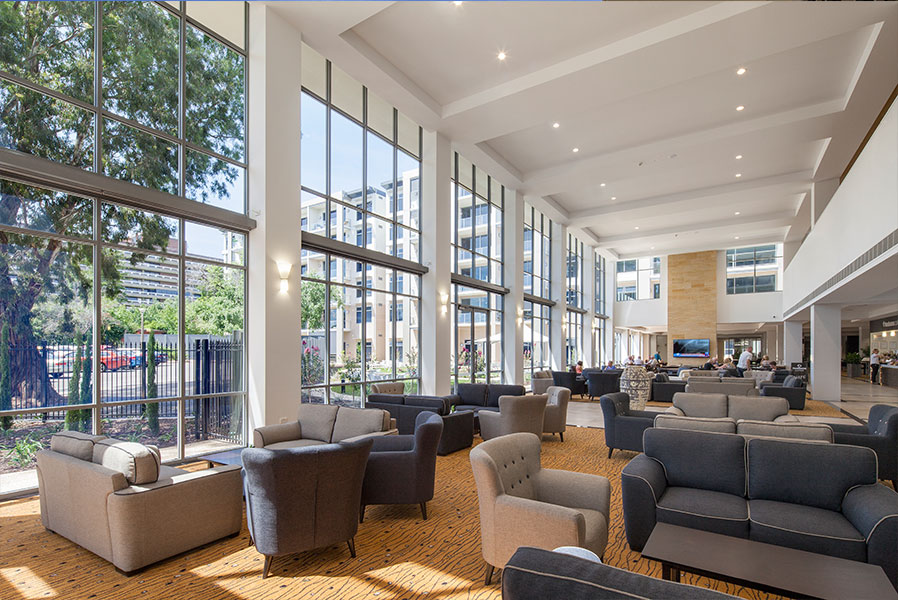

  • FEATURED PROJECTS

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 400.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 400 but differ in aesthetics and performance.
