Commercial ThermalHEART™ | Series 852 Hinged

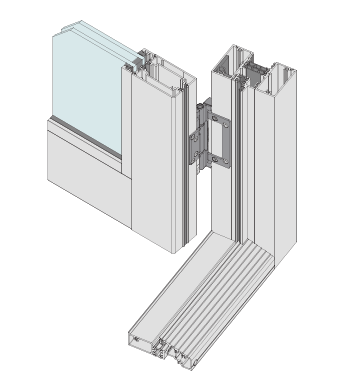

Commercial ThermalHEART™ | Series 852 HingedThermally Broken Hinged Door

Thermally Broken Hinged Door
Maximum Panel Height* 2800mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.16 - 0.45
Uw Range 2.6 - 3.4
AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 852 hinged doors are an innovative thermally broken aluminium commercial door system designed to complement the Elevate™ Commercial thermally broken CentreGLAZE™ and FrontGLAZE™ framing systems.
  • Incorporating ThermalHEART™ technology, Series 852 hinged doors deliver excellent thermal performance and are ideal for commercial and high-end residential applications where minimising heat or cold transfer is desired.
  • To enable excellent thermal performance to be achieved, a "Thermal Break" is incorporated which separates the inside and outside elements of the frame providing an insulator to minimise the transfer of heat or cold between the elements.
  • This insulating strip is manufactured from polyamide and delivers the same structural properties as aluminium to ensure the integrity of the system is maintained.
  • Series 852 commercial hinged door system incorporated fully beaded 50mm thick heavy duty door stiles and rails designed to accept 24mm IGUs.
  • We also offer a range of snap-on glazing beads to allow us to fit thinner glass – down to 4mm thick.
  • Hinged door stiles have been designed to accept wide backset (34mm and 38mm) locks. The greater the backset the easier it is to access the key.
  • Double glazed hinged doors will be heavy and for this reason we have designed an adjustable heavy duty hinge.
  • Captive co-extruded glazing wedge option (illustrated) reduces the chance of vandalism.
  • Top and bottom rails are secured to stiles with heavy duty spigot fixed to thick backing plate with high tensile bolts.
  • Can also be configured as sliding/ Stacking door see Series 852S.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
There is no documents for this product.
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Accepts 28mm IGU

      A range of glazing beads and wedges allow glass thicknesses from 4mm to 28mm.

      Accepts 28mm IGU
    • Tight Joints

      Custom heavy duty aluminium spigot and backing plate for tight joints between stiles and rails.

      Tight Joints
    • Mortice Locks

      The wide stiles allow us to fit extra wide 34mm backset mortice locks.

      Mortice Locks
    • Nylon Stile Cap

      Injection moulded nylon stile end cap keeps water and dust away from the lock motor.

      Nylon Stile Cap
    • Thermally broken head

      Custom thermally broken head and transom to accept COC cover and doors.

      Thermally broken head
    • Thermal Rating

      ThermalHEART™ frames perform significantly better than traditional aluminum frames.

      Thermal Rating
