Commercial ThermalHEART™ | Series 831

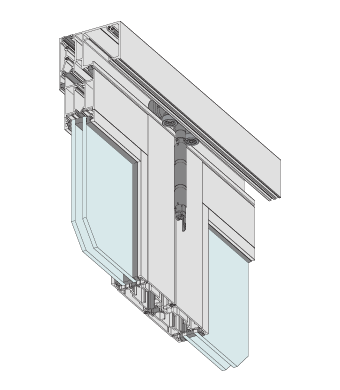

Commercial ThermalHEART™ | Series 831ThermalHEART E3 Bi-Fold Door (Top Hung)

ThermalHEART E3 Bi-Fold Door (Top Hung)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.21 - 0.5
Uw Range 2.4 - 5
AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • This top hung commercial bi-fold door system has been designed to go into CentreGLAZE™ and FrontGLAZE™ framing.
  • Bi-fold door frames can also be fabricated with 17mm Slimline jambs.
  • 50mm Thick door panel accepts thick glass and can achieve large commerical bi-fold door panel sizes.
  • Framing and doors can be supplied in dual colour option with a different colour inside to out.
  • Wide door stiles accept 40mm backset locks that allow easier access to the lock cylinder.
  • The standard locks for Series 831 are lever compression locks with ICON™ 316 stainless steel furniture.
  • AWS Centor™ twin stainless steel roller bearings running in heavy duty dual overhead tracks. The E3 rollers will support panels up to 80Kg.
  • Rollers and pivots can he height adjusted as required.
  • Top and bottom pivots (jamb hinges) can be adjusted horizontally if required.
  • There is a variety of sill options for this bi-fold door to choose from. Weather resisting through to recessed sill channel.
  • Heavy duty door joinery spigots with matching backing plates.
  • Extra deep glazing beads designed to give 12mm glass bite and 15mm glass cover with 4mm installation/ fabrication tolerance.
  • True French meeting stiles for type BFD3+1 doors.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
There is no documents for this product.
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Adjustable Hinges

      Ability to adjust the hinges sideways
      Adjustable Hinges
    • Heavy Duty Head

      These bi-parting rollers nest snugly in custom heavy duty head
      Heavy Duty Head
    • Top Hung

      The top hung rollers are designed to carry heavy panels up to 80kg.
      Top Hung
    • Head Roller Adjust

      Roller height can also be adjusted with a flat screw driver
      Head Roller Adjust
    • Custom Activator

      Matching custom 316 stainless steel ICON bolt activator.
      Custom Activator
    • Nylon Bolt Guide

      Custom nylon bolt guide/end cap keeps water and dust away.
      Nylon Bolt Guide
    • Custom Lock

      Custom 316 stainless steel ICON multi-point lever lock.
      Custom Lock
    • Capped Stile

      Lock stile end capped to guide shoot bolts and protect lock motor.
      Capped Stile
