Residential Series | Series 514

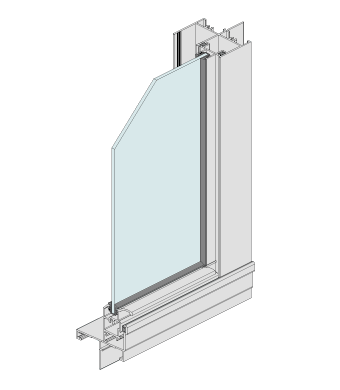

Residential Series | Series 514Residential Double Hung Window

Residential Double Hung Window
Maximum Panel Height* 1050mm
Maximum Panel Width* 1010mm
Maximum Glass Thickness ≤ 7.52mm
SHGC Range 0.31 - 0.74
Uw Range 4.3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • This residential double hung window has been successfully tested for compliance with AS 2047.
  • Optional mullion and transom strengths for this double hung window to cover a large variety of design wind load areas.
  • 50mm wide perimeter frame will couple to a large variety of adaptors in this double hung window without visible rivets or screws.
  • Finger grip built into the top and bottom sash rails of this residential double hung window.
  • The same frame can be used for Double-Hung or fixed sidelights in standard wrap around glazing or individually glazed sashes.
  • Double hung sashes will bypass each other to allow cleaning of all glass from inside the building.
  • Double hung sashes run on spring balances with adjustable spring shoes.
  • Interlocking meeting rails.
  • Fixed sill has built-in drainage to take care of condensation.
  • Standard sill will rate to 200Pa water resistance plus there is a tubular sill option for 300Pa water resistance projects.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 514 Double Hung

    Series 514 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Locking

      Heavy duty colour matched locking.
      Locking
    • Screens

      Integrated fly screens.
      Screens
    • Sill Options

      Standard and high performance sill options.
      Sill Options
    • Transom

      Standard, medium and heavy duty transom options.
      Transom
  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 514.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 514 but differ in aesthetics and performance.
