SlideMASTER™ High Performance Sliding Door (Recessed Sill)

Architectural Series | Series 703

SlideMASTER™ High Performance Sliding Door (Recessed Sill)

The 703 SlideMASTER™ Sliding Door with High Performance recessed sill offers a flush threshold, architectural style and higher performance ideal for exposed locations or elevated apartments.

  • Compliant with Australian standards, including AS2047 for air-conditioning and high wind areas.
  • Very high water resistance of 1200Pa.

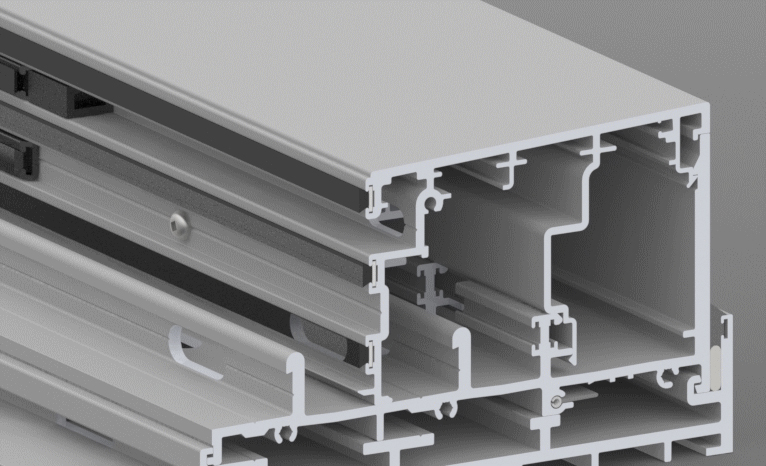

  • The fully recessed sill is designed for applications looking for a clean transition from inside to outside.
  • Panels are designed to be extra-strong to accommodate large sliding doors in high wind load areas.
  • The bottom rolling panels run-on heavy-duty rollers for smooth operation.

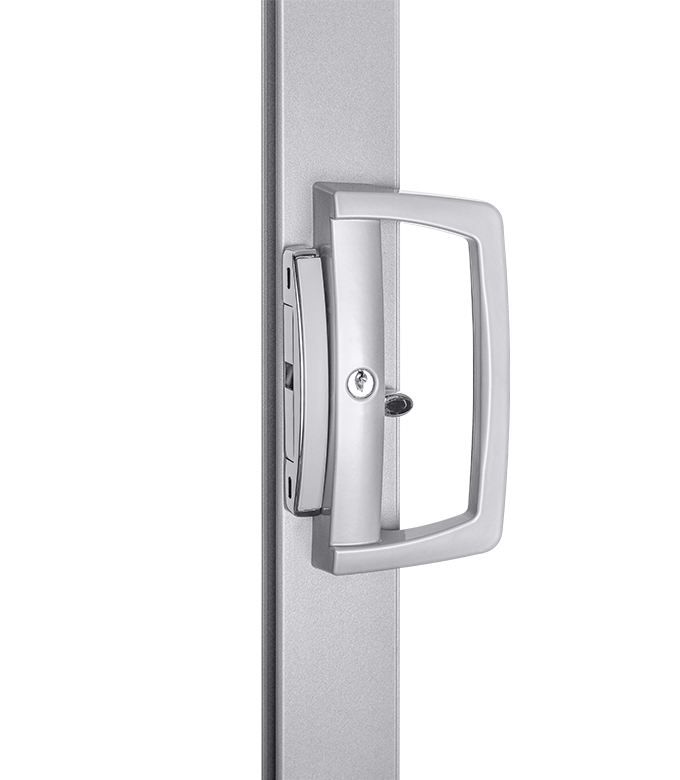

  • Doors can be fitted with surface-mounted deadlock or mortice lock.

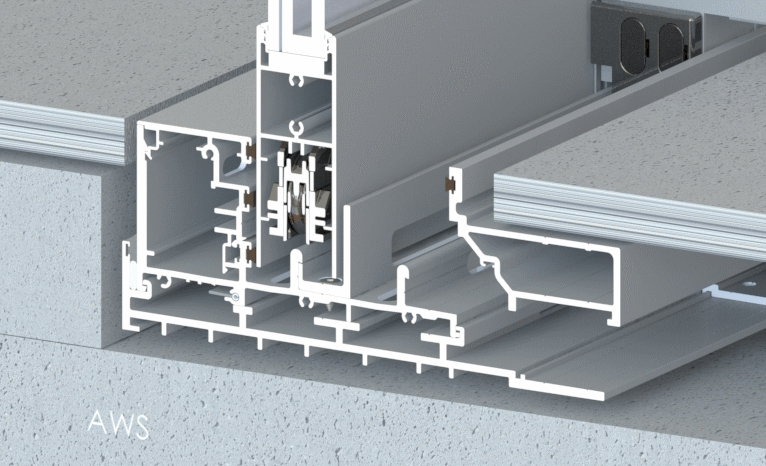

  • The sill is designed to be installed in conjunction with external floor tiles, offering concealed drainage and a flush transition.
  • Alternative splayed sill delivers the highest water performance and incorporates a slight (7ₒ )_slope in the threshold.
  • The first run of floating external floor tiles are self-draining and removable for future panel maintenance.
  • Door panels slide on the inside.
  • Snap-in pocket fillers on the head, sill and jambs ensure a consistent visual appearance.
*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
Maximum Frame Height* 2700mm
Maximum Panel Width* 1500mm
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.59 - 0.15
Uw Range 3.2 - 6.2

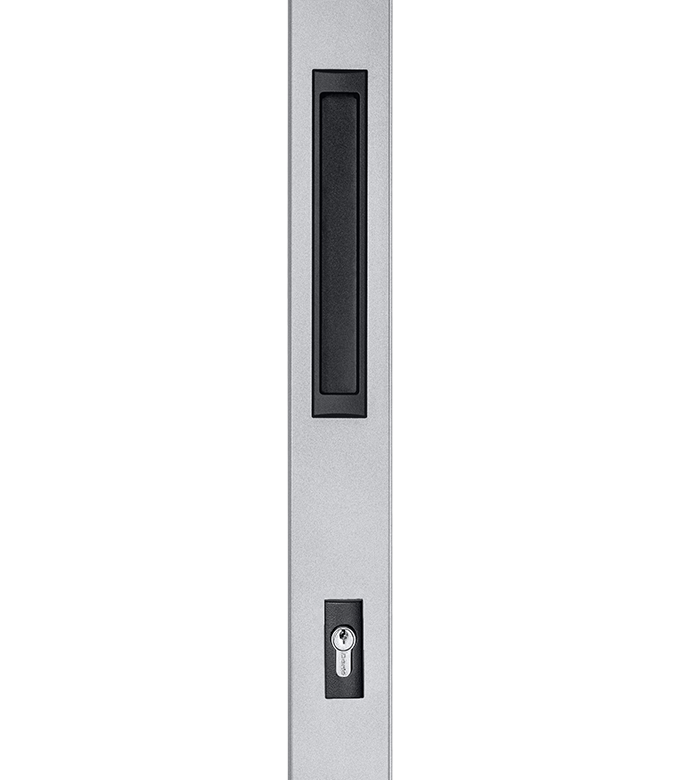

AWS complementary product options designed for use with SlideMASTER™ High Performance Sliding Door (Recessed Sill).
