Architectural Series | Series 411

Architectural Series | Series 411ViewMASTER™ Bi-Fold Door (top hung)

ViewMASTER™ Bi-Fold Door (top hung)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.14 - 0.59
Uw Range 3.3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 411 Bi-fold door (top hung) has been designed to accept the 50mm thick heavy duty Series 50 and 52 doors.
  • This bi-fold door can be manufactured with compliant panels up to 3000mm high.
  • Bi-fold doors are hung on Centor™ twin stainless steel bearing rollers running in heavy duty dual overhead tracks.
  • The standard E2 rollers on our bi-fold doors will carry door panels up to 40kg.
  • Heavy duty E3 will carry bi-fold door panels up to 80kg.
  • The Surelock™ adjustment on the pivots and carriers allow all panels to be lifted or lowered easily with a flat screwdriver. Bi-fold doors can be adjusted vertically up to 5mm plus or minus.
  • Carriers, pivots, hinges and fixings supplied in 304 SS.
  • Snap-on jamb adapter accommodates an extensive range of jambs to cover almost any situation.
  • A variety of lever and lock options are available including multi-point locking on our bi-fold doors for added security.
  • Our bi-fold doors have been successfully tested to resist 450Pa water and are suitable for air conditioned buildings when weather resisting sill is used.
  • Bi-fold doors can be configured to incorporate single or double entry doors so access can be achieved without opening the whole unit.
  • Bi-fold doors can be fitted with Centor S1E Eco Screen

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 411 Bi-fold Door

    Series 411 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Top Hung

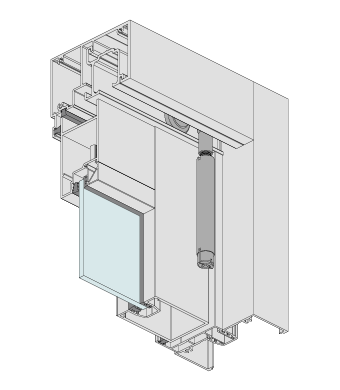

      The 411 utilises both Centor E2 and E3 running gear, the lighter E2 illustrated.
      Top Hung
    • Hardware

      A full range of hardware available including multiple 4-point locking mechanisms.
      Hardware
    • Adjustment

      All pivots are vertically and horizontally adjustable.
      Adjustment
    • Compatibility

      The 411 incorporates varying profiles to be used as jambs, including corner mullion detailed.
      Compatibility
    • Pivot

      Bottom pivot incorporates a unique adjustment system.
      Pivot
    • Screening

      All Elevate™ systems can incorporate Centor roll-away screens.
      Screening
