Commercial Framing | Series 646

Commercial Framing | Series 646SoundOUT™ FrontGLAZE™

SoundOUT™ FrontGLAZE™
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 12.5mm
SHGC Range 0.32 - 0.59
Uw Range 2.6 - 3.2
Acoustics Testing Certified AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Elevate™ SoundOUT™ FrontGLAZE™ shopfront framing system with 20.50mm wide glazing pocket is designed to accept glass up to 13.38mm thick with 10mm bite.
  • The 24mm deep glazing pocket allows 20mm for pocketing the glass and 4mm for tolerances and installation clearance.
  • The 150 x 50mm framing system is designed for sound reduction with glass on external and internal faces.
  • Very high water resistance can be achieved. Has been successfully tested at 1275Pa water resistance with standard interlocking mullion.
  • Sound reduction numbers up to Rw 51.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
There is no documents for this product.
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Dual Glazing System

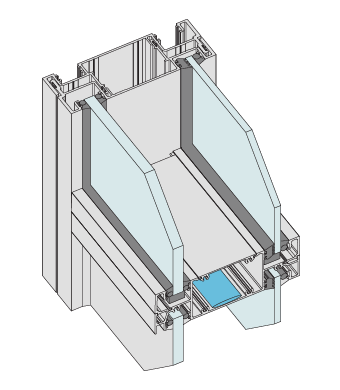

      Twin glazed with 100mm air gap between glass. Accepts glass up to 12.5mm thick. Delivers very high sound reduction.



      Dual Glazing System
    • Self mating mulion

      Self mating mullion with four full width interlocking legs. Deep / wide glazing pocket to comply with glass manufacturer tollerances.



      Self mating mulion
    • Silica Gel Crystals

      Sill/ transom has Silica Gel crystals inserted at the time of glazing to remove moisture from the trapped air cavity between the glass panels.

      Silica Gel Crystals
    • Sill/transom Fillers

      Sill/transom fillers stop short both ends to allow the Silica Gel to work.



      Sill/transom Fillers
  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 646.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 646 but differ in aesthetics and performance.
