Architectural Series | Series 704SlideMASTER™ Sliding Door (Internal Sliding)

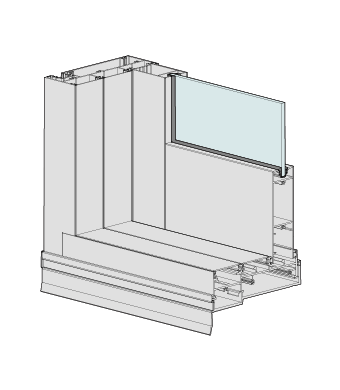

SlideMASTER™ Sliding Door (Internal Sliding)
Maximum Panel Height* 3000mm
Maximum Panel Width* 2500mm
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.15 - 0.59
Uw Range 3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The Series 704 high performance sliding door has been tested for compliance with the relevant Australian Standards. This sliding door has a high water resistance of 450Pa and complies with the air conditioning requirements of the standard.
  • The extra strong multi-hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas.
  • There are a large variety of door combinations possible. XF,FX, FXF, FXXF, XXF, FXX, XXXF, FXXX, FXXXXXXF and FXXXXF. 90° corner units FX^XF and FXX^XXF are also available
  • The Series 704 sliding door is compatible with the high performance Series 406 / 606 and 426 / 626 FrontGLAZE™ framing.
  • These sliding doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock.
  • Series 704 sliding doors run on heavy duty double bogey wheel carriages.
  • Aluminium sub-sills are available and should be used in all installations.
  • Sliding doors can be fitted with internal sliding or roller flydoors.
  • The Series 704 sliding doors can be fitted with Centor S1E Eco Screen

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 704 SlideMASTER™

    Series 704 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Sub-Frame

      A unique, self-draining sub-sill is a feature of the 704.
      Sub-Frame
    • Flush Sill

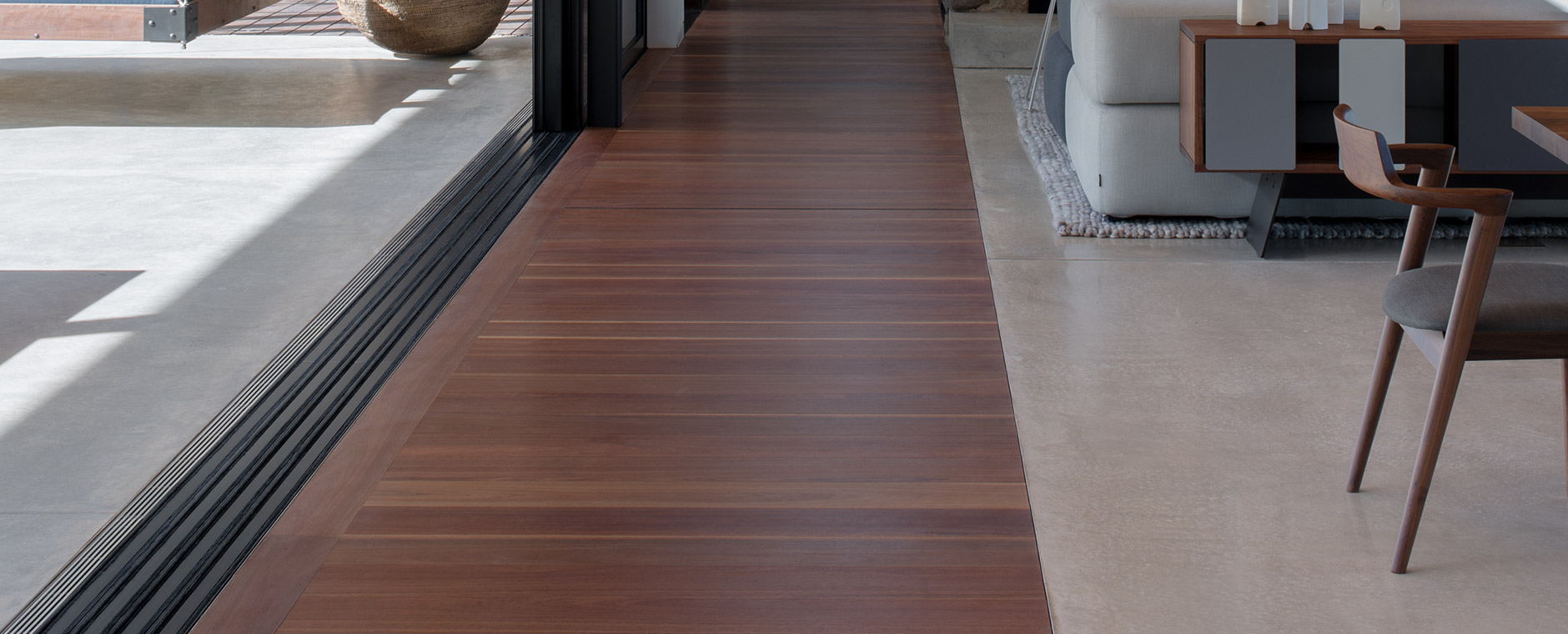

      Sills can be installed flush between internal and external.
      Flush Sill
    • Drainage

      Sill drainage a speciality. Contact AWS Tech Support for varying options.
      Drainage
    • Rails

      Tall, small, beveled and square rails are all options. Small, square rail detailed.
      Rails
    • Support

      Central support leg in sub-sill for heavy doors.
      Support
    • Stiffness

      Rails can be stiffened where high wind load is an issue.
      Stiffness

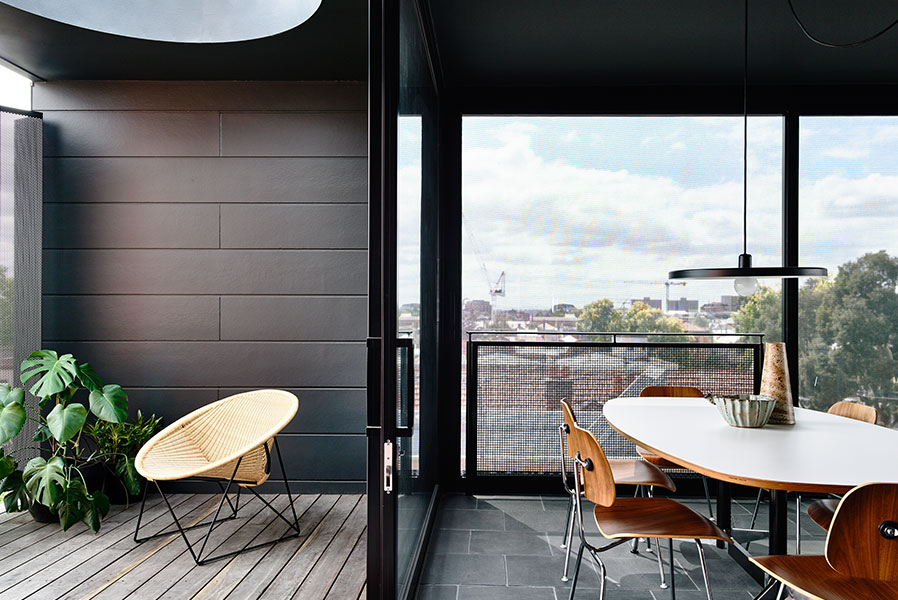

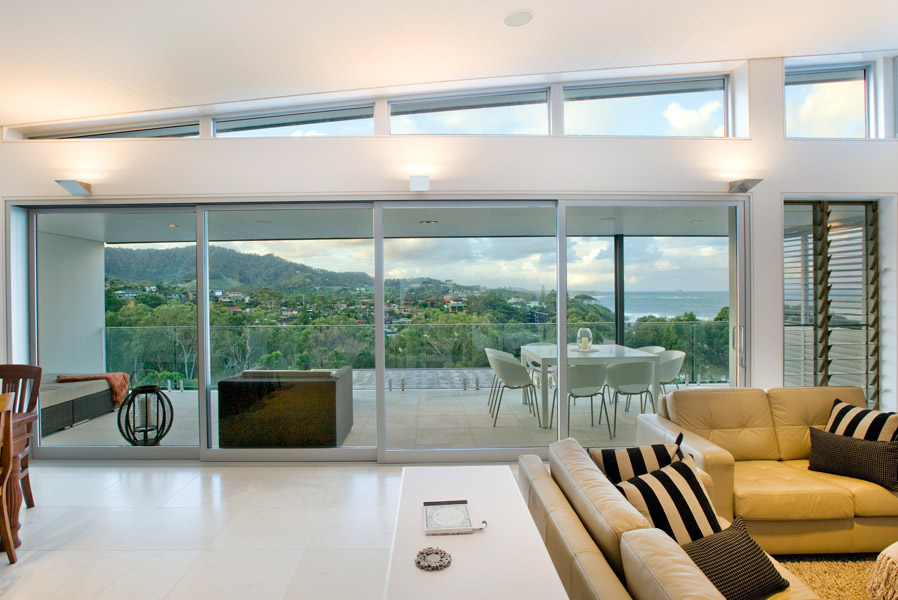

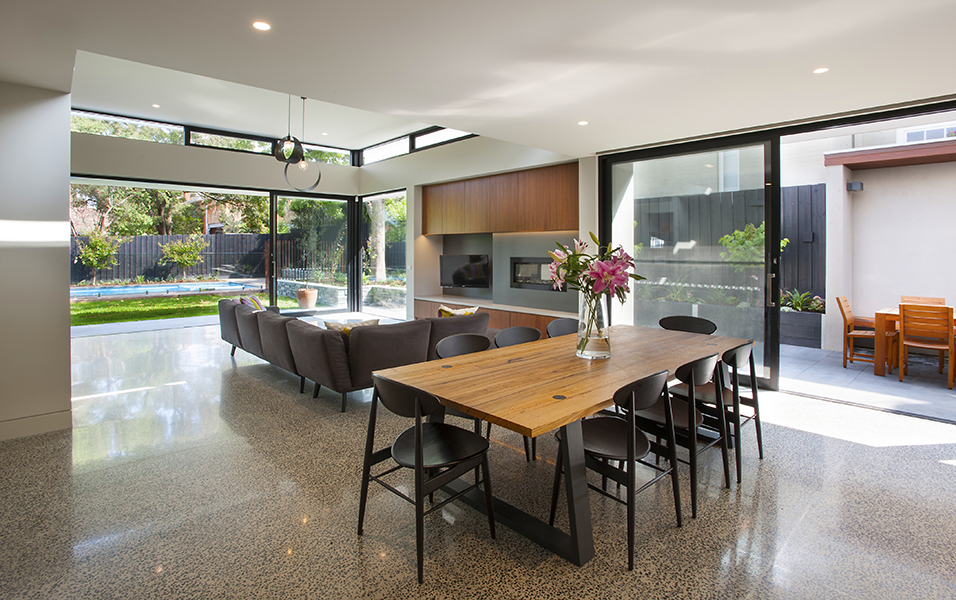

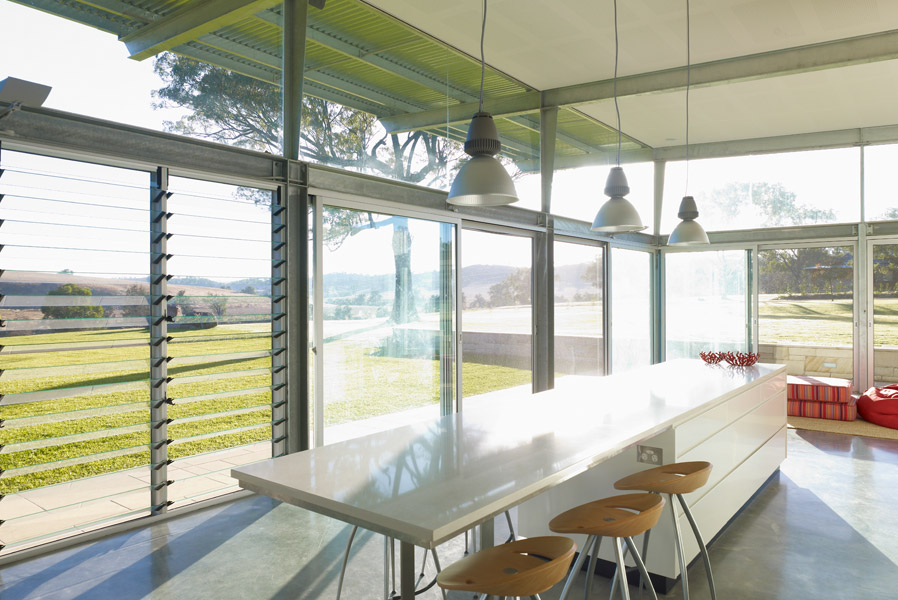

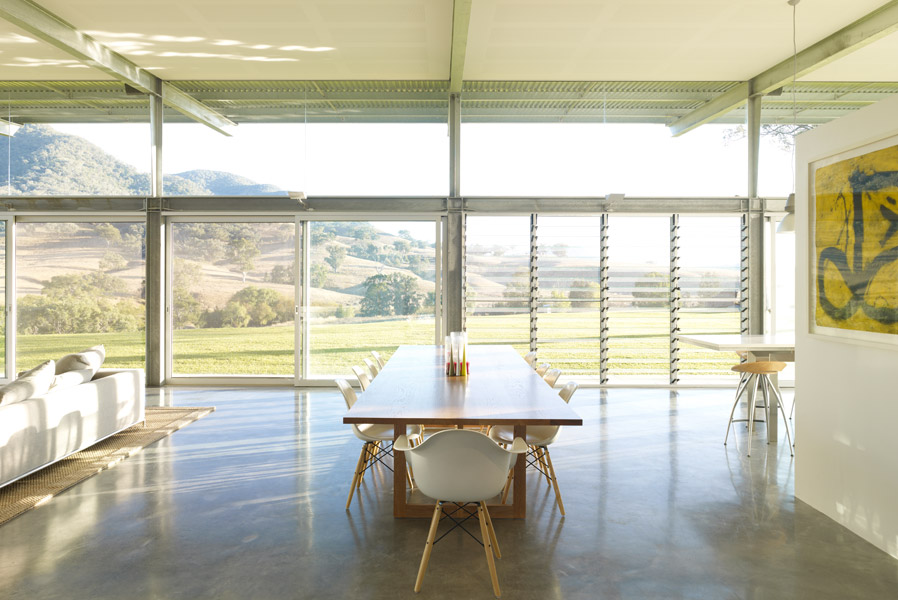

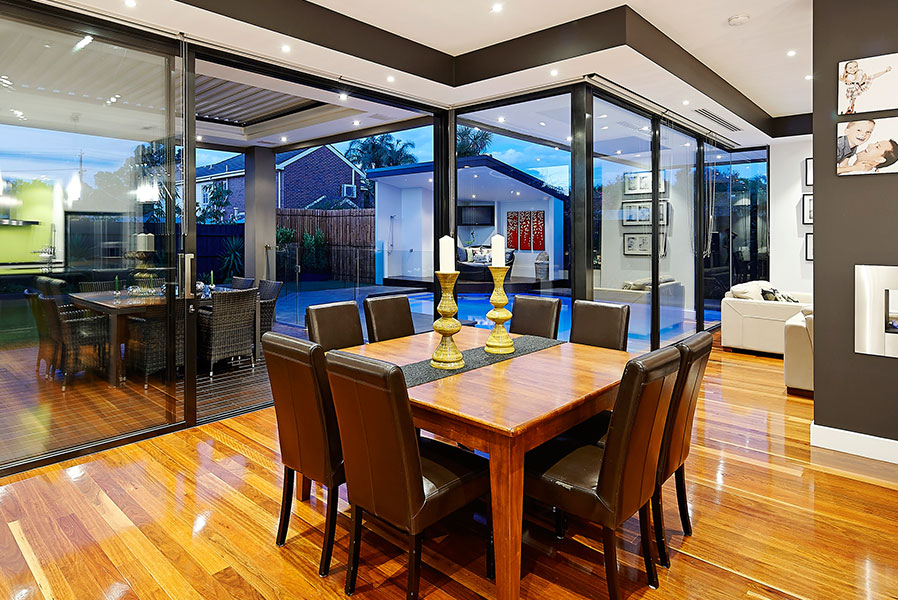

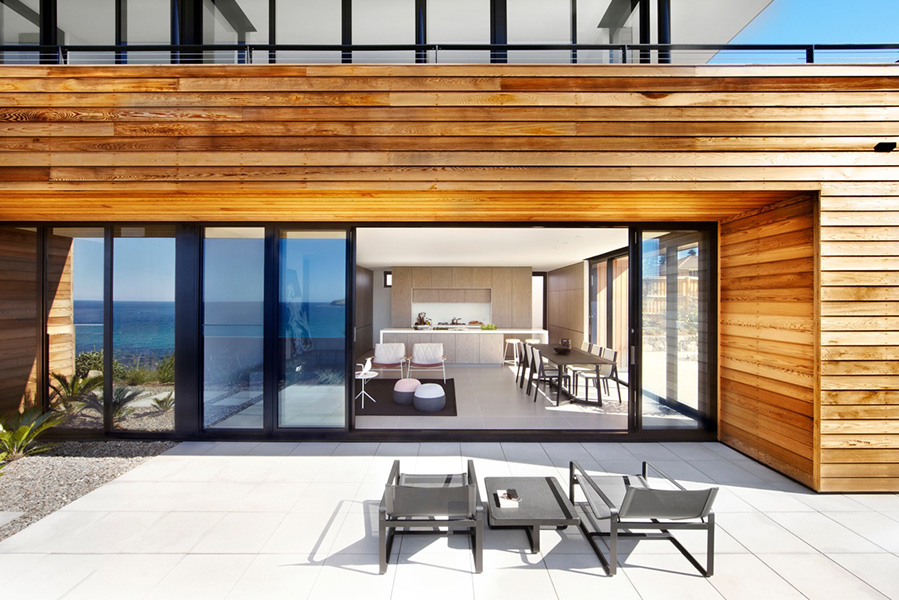

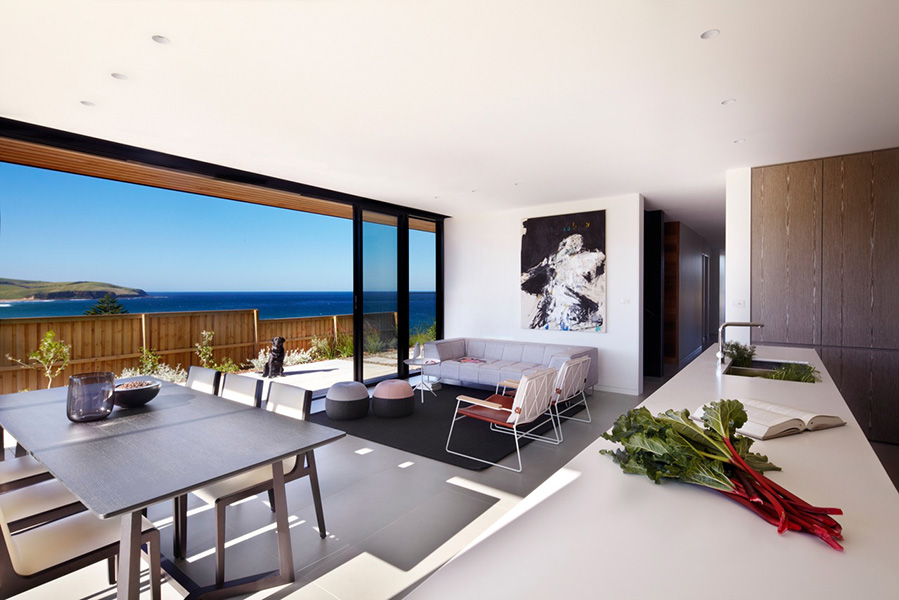

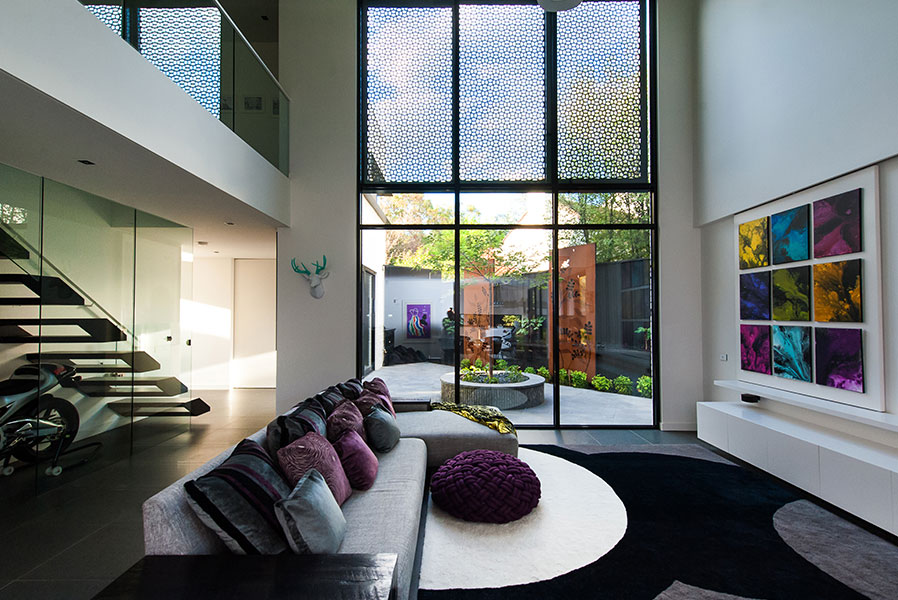

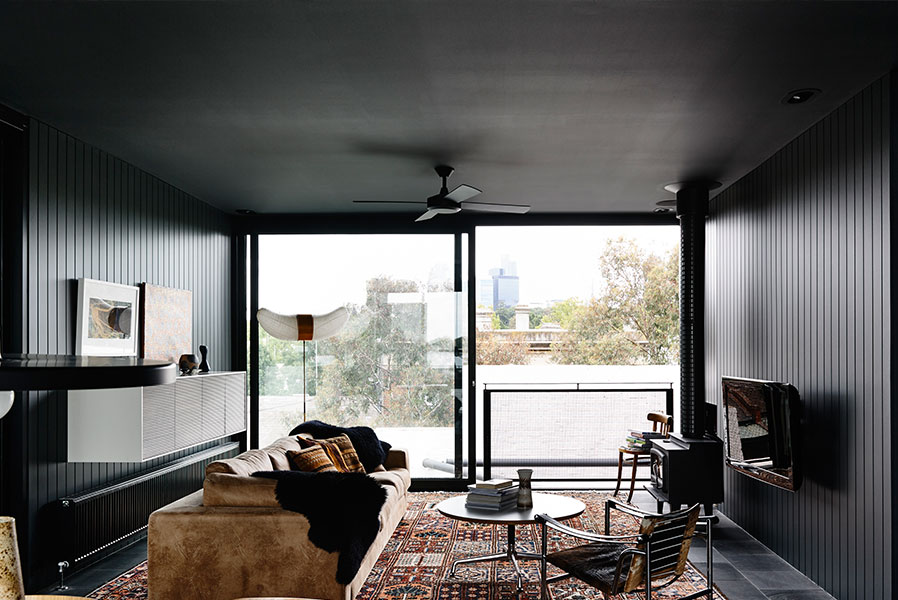

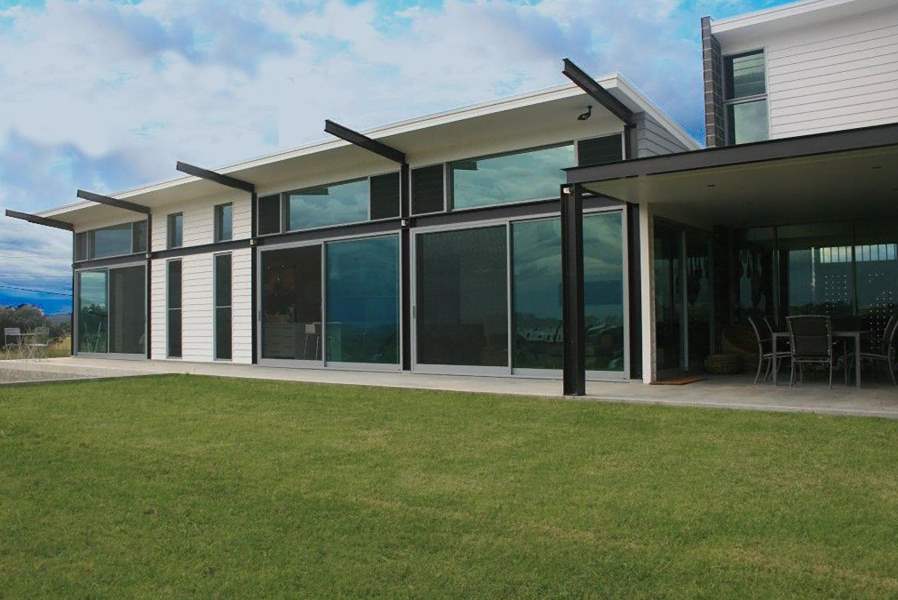

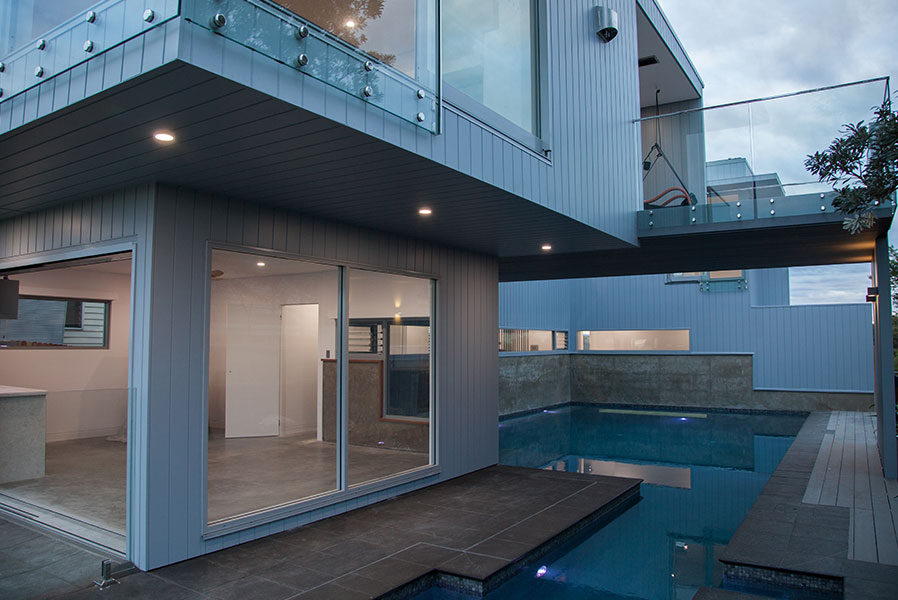

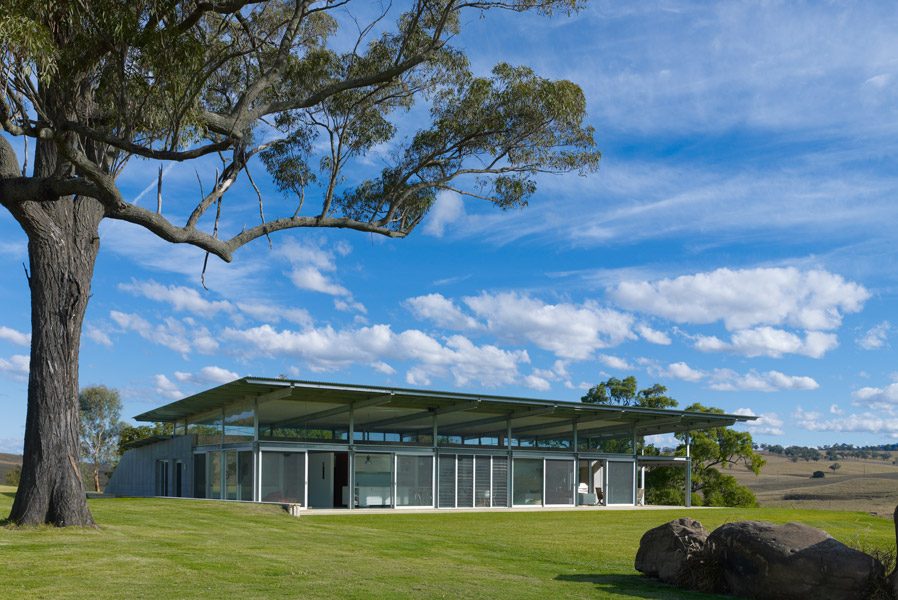

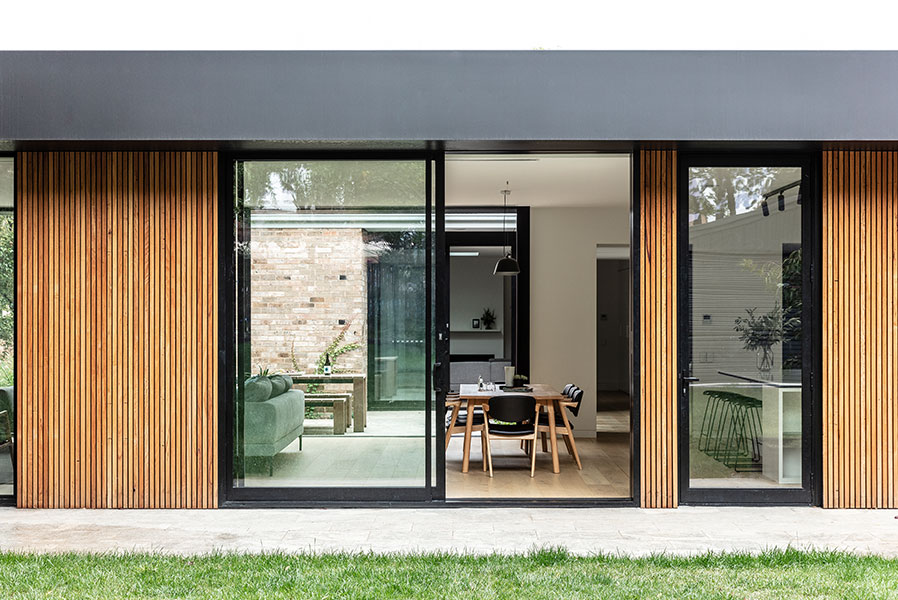

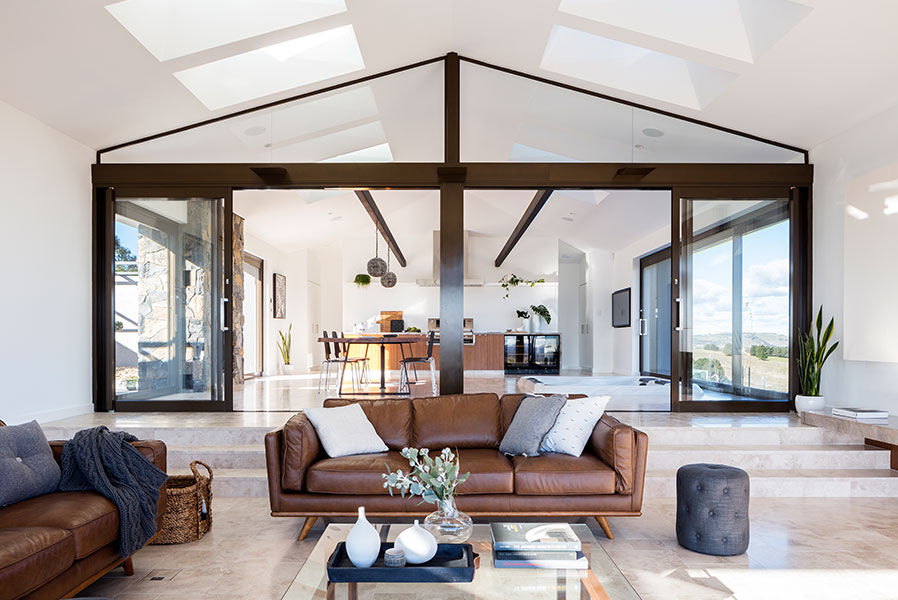

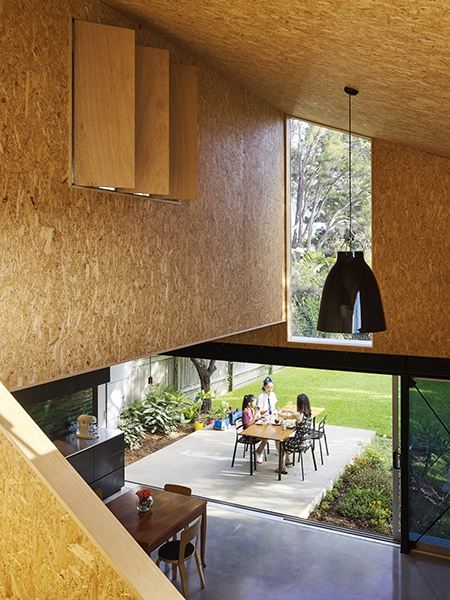

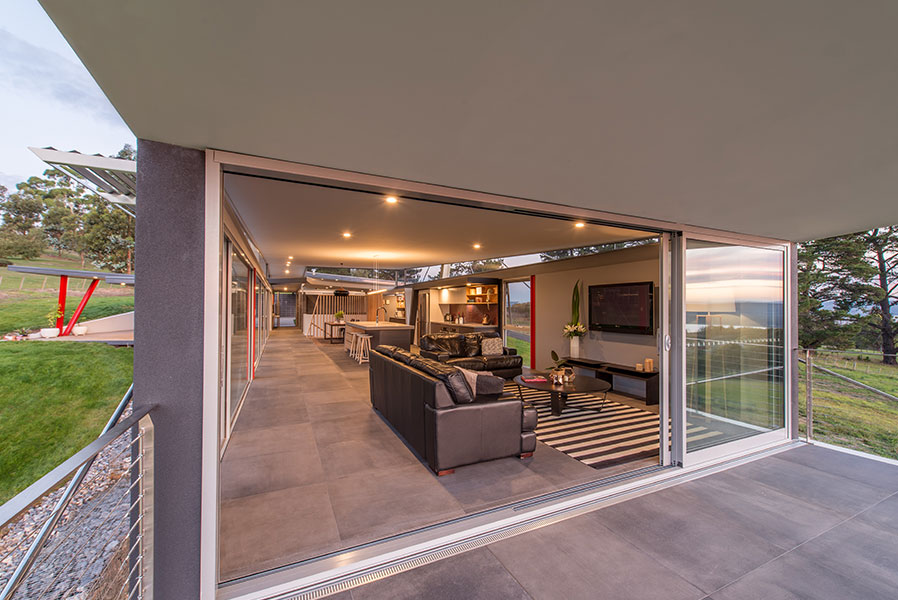

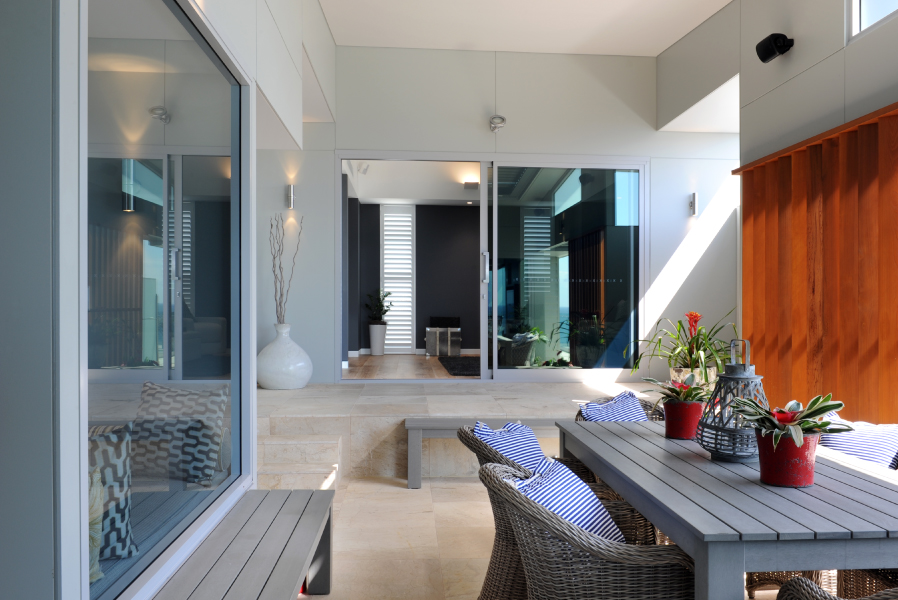

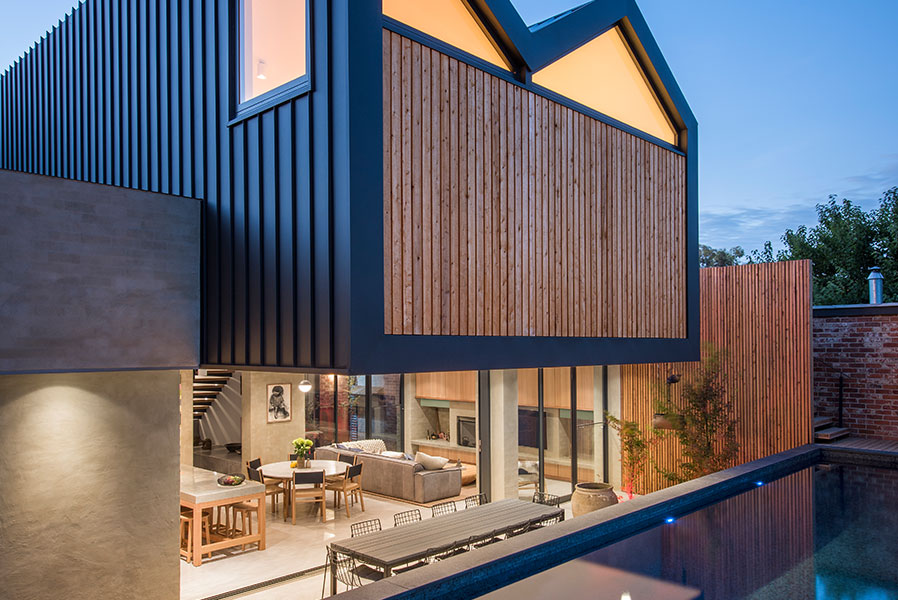

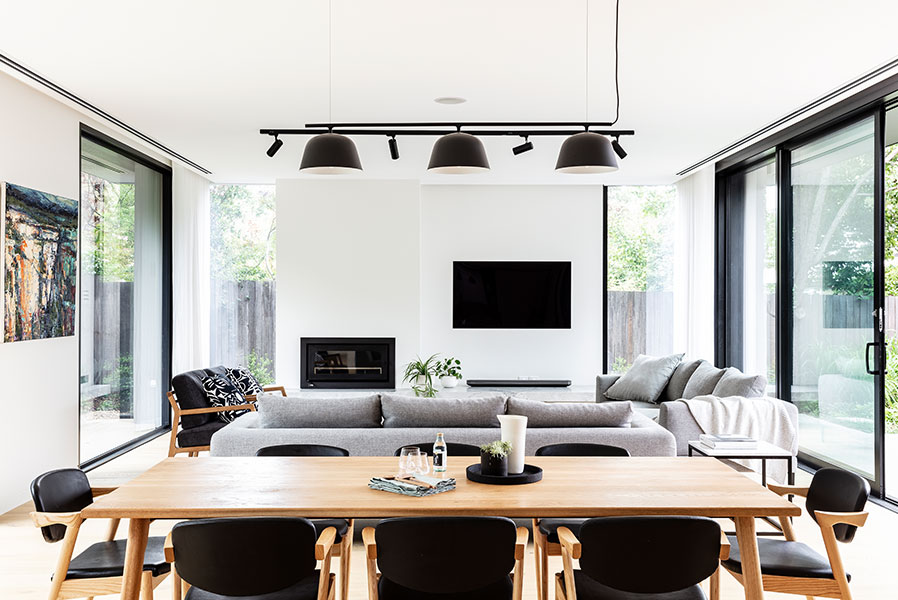

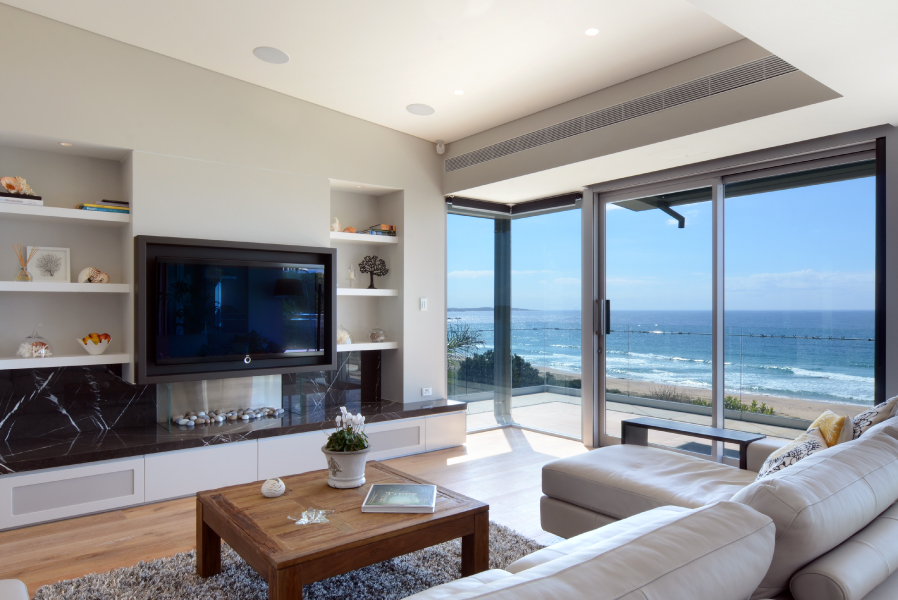

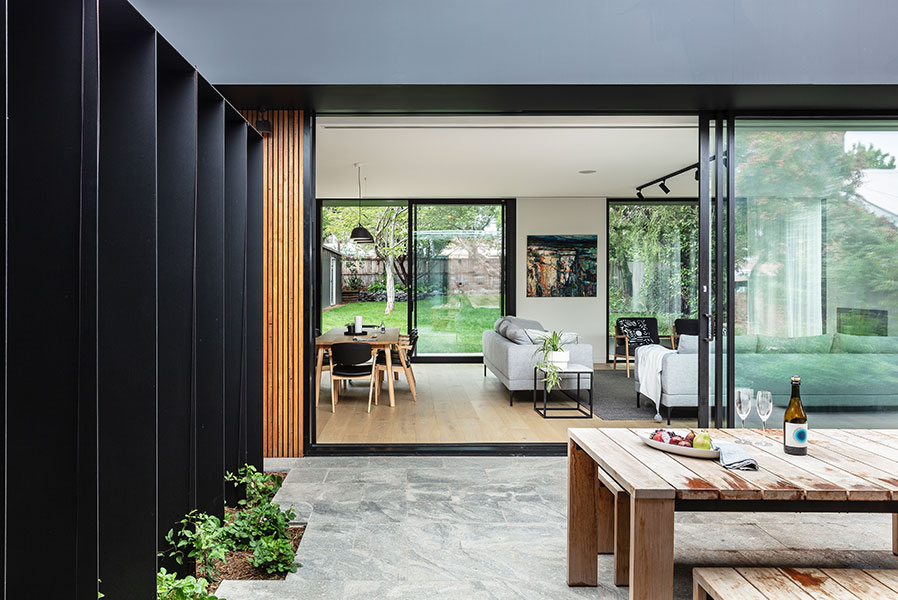

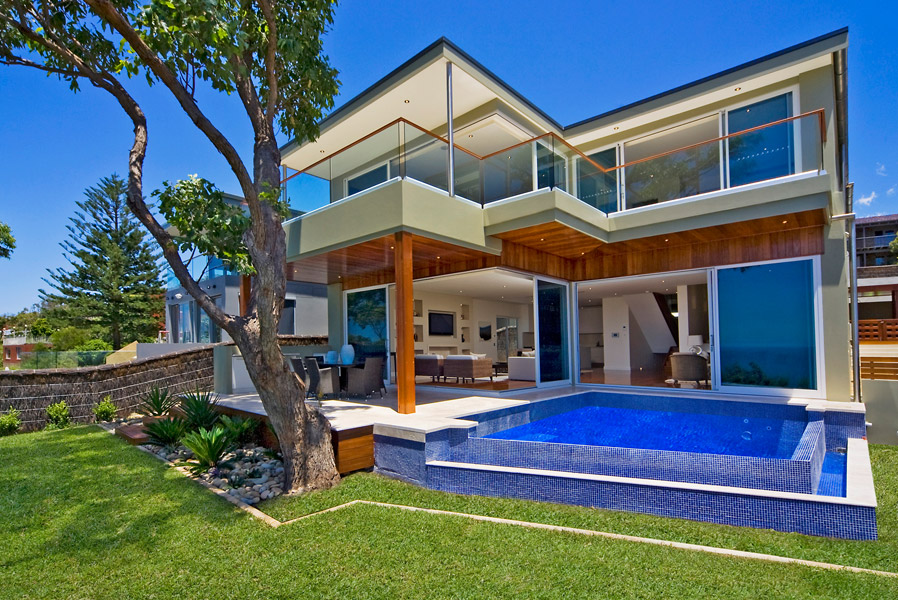

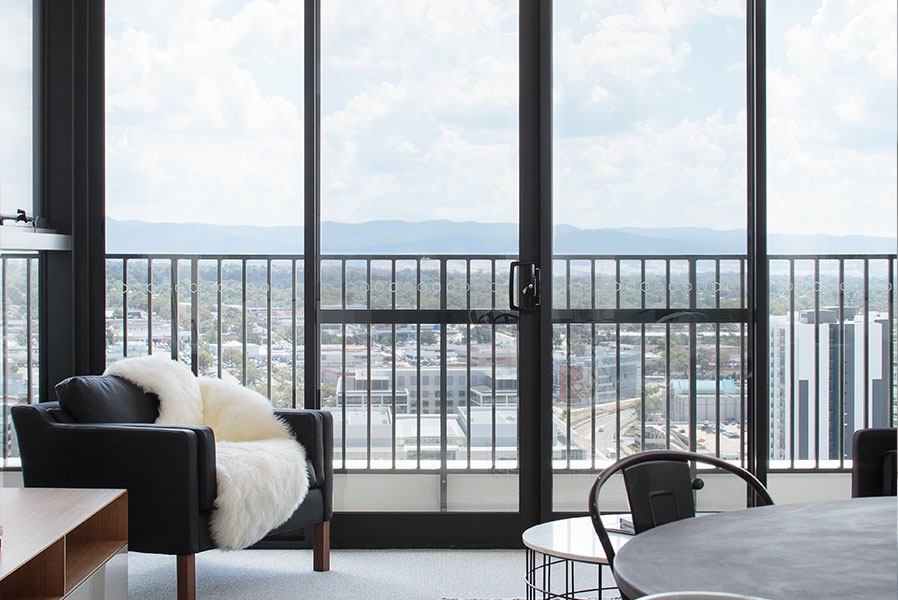

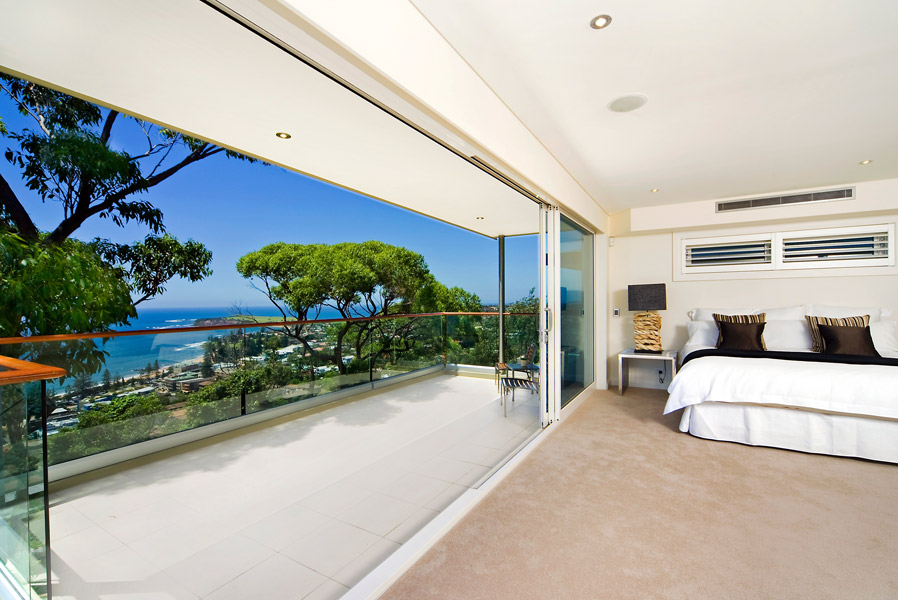

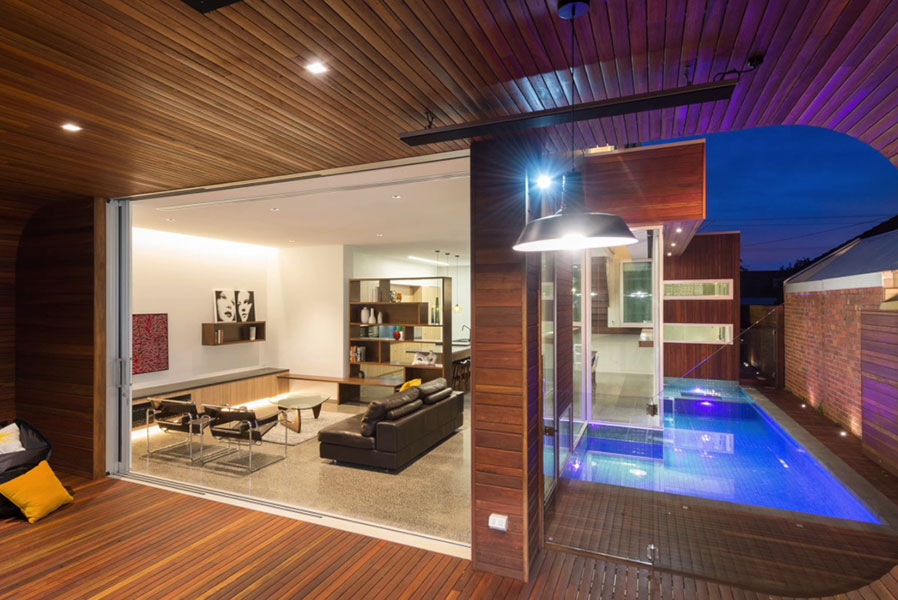

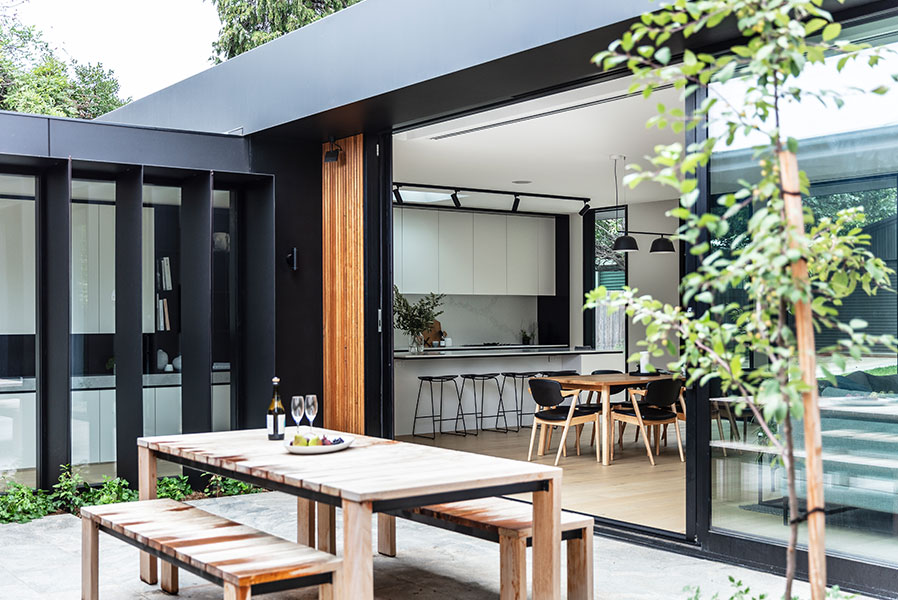

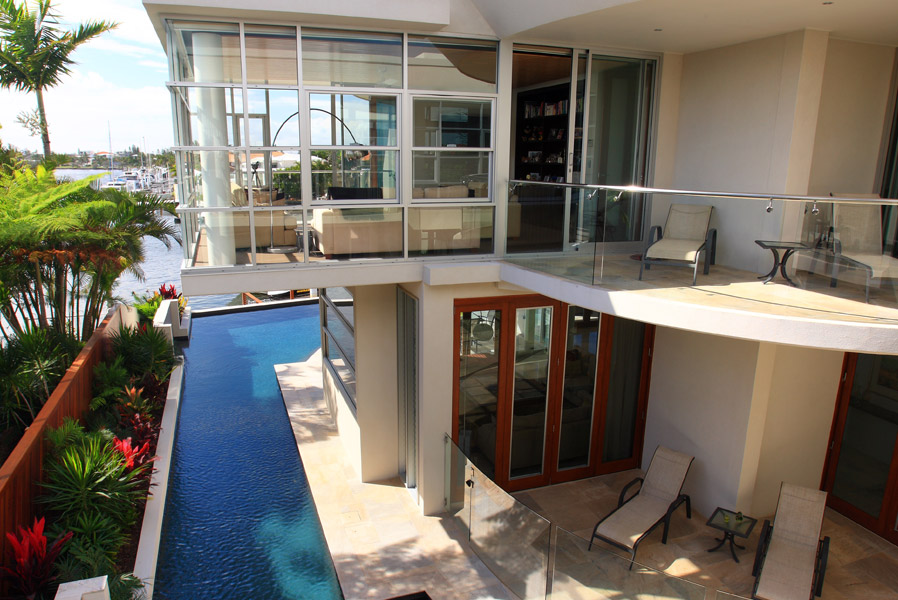

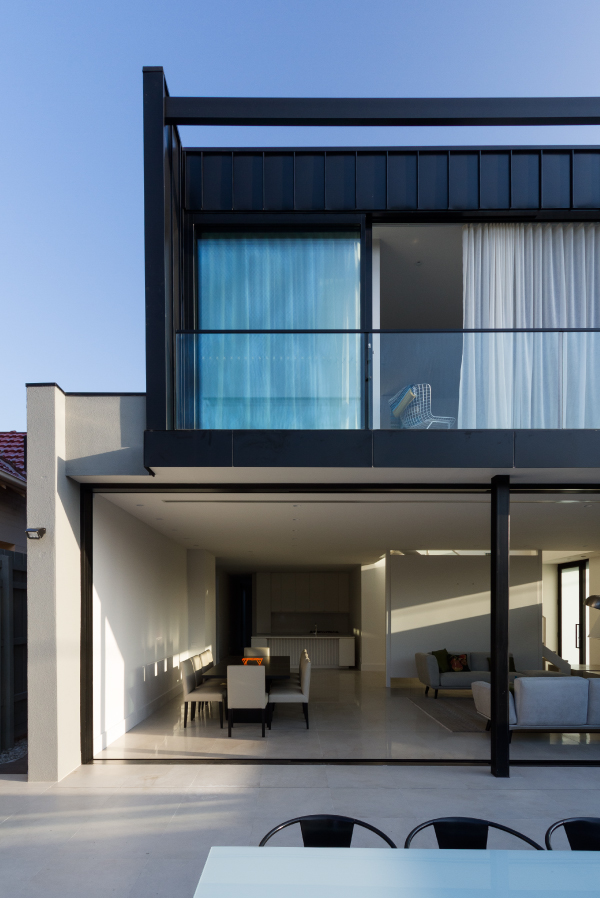

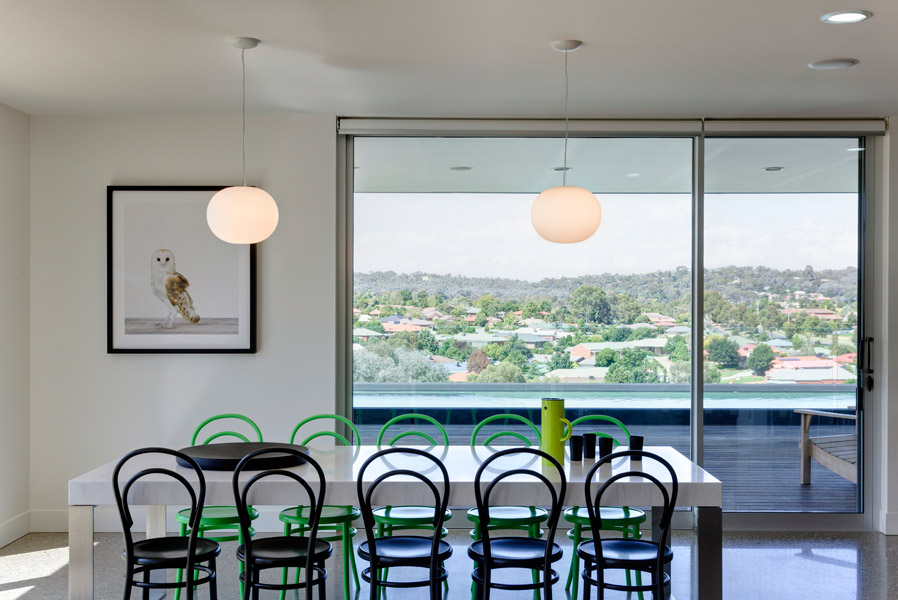

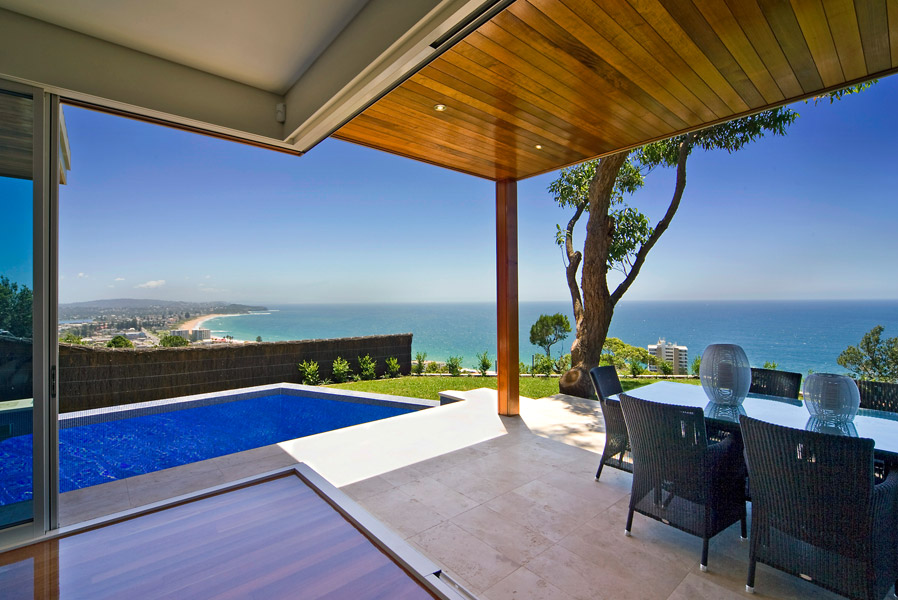

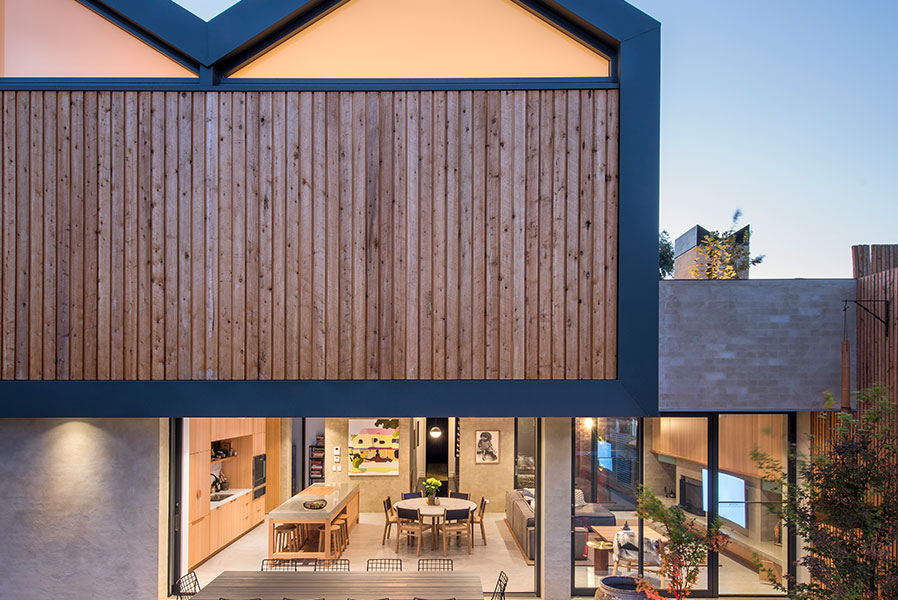

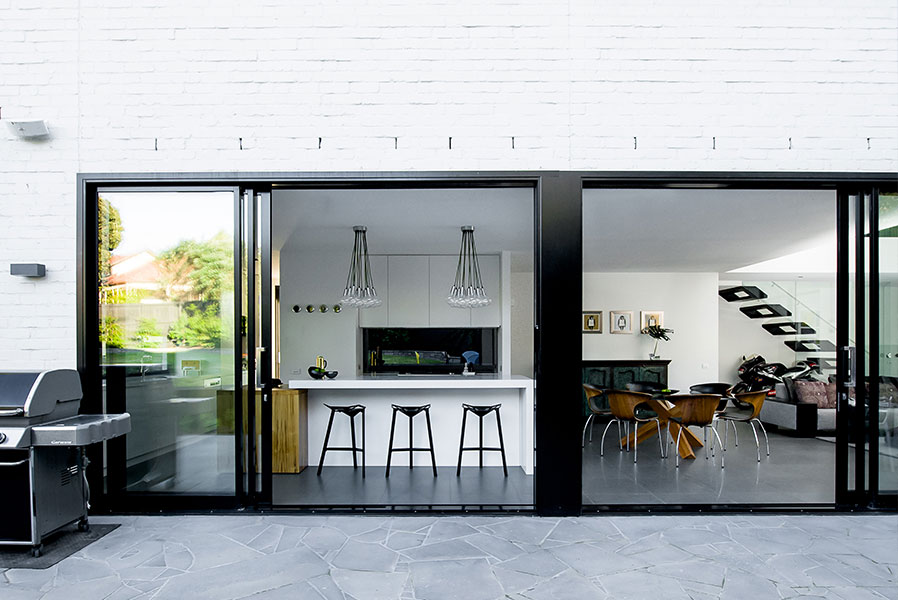

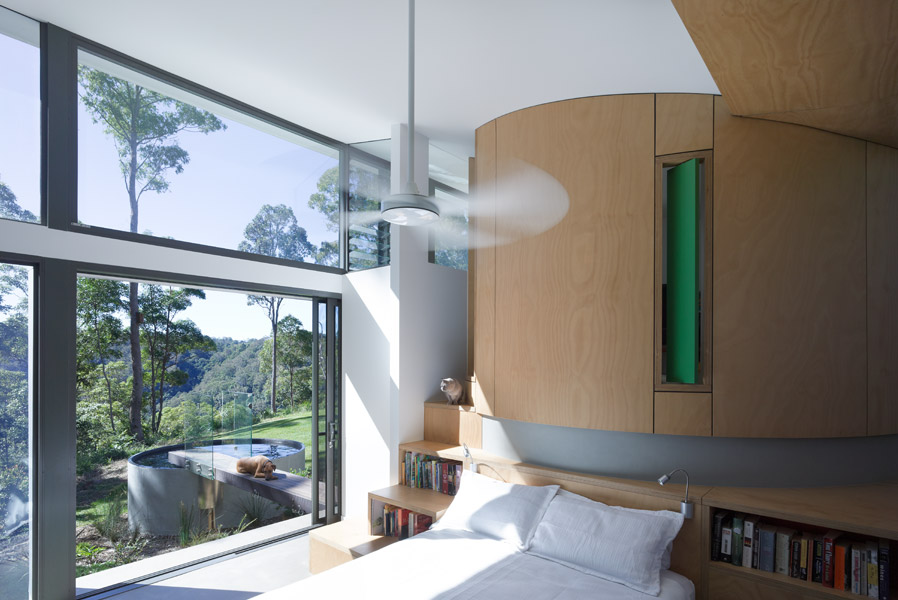

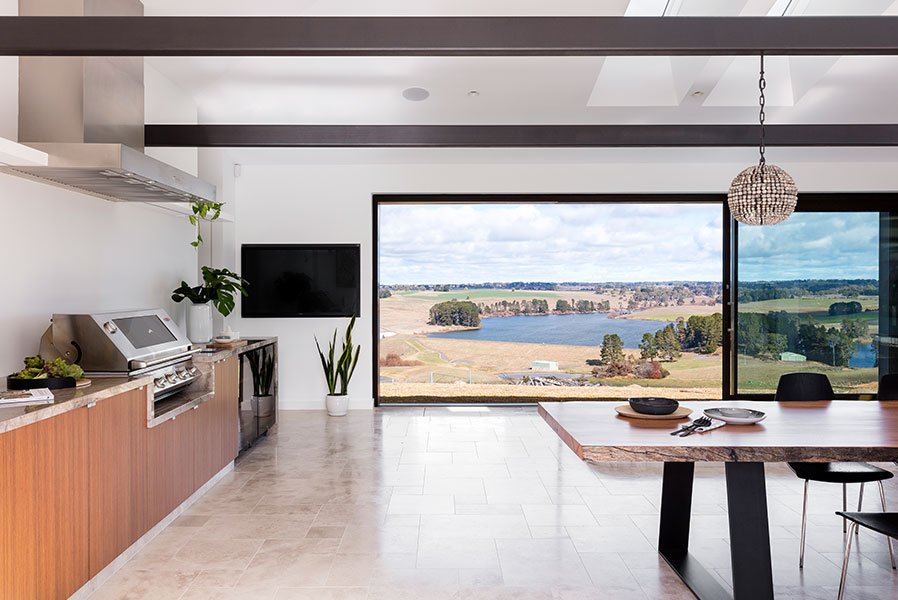

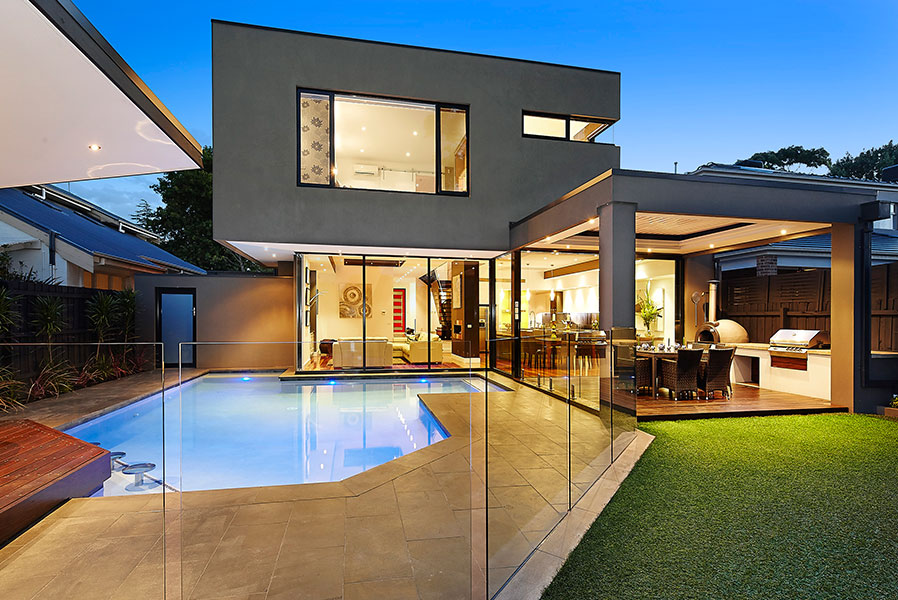

  • FEATURED PROJECTS

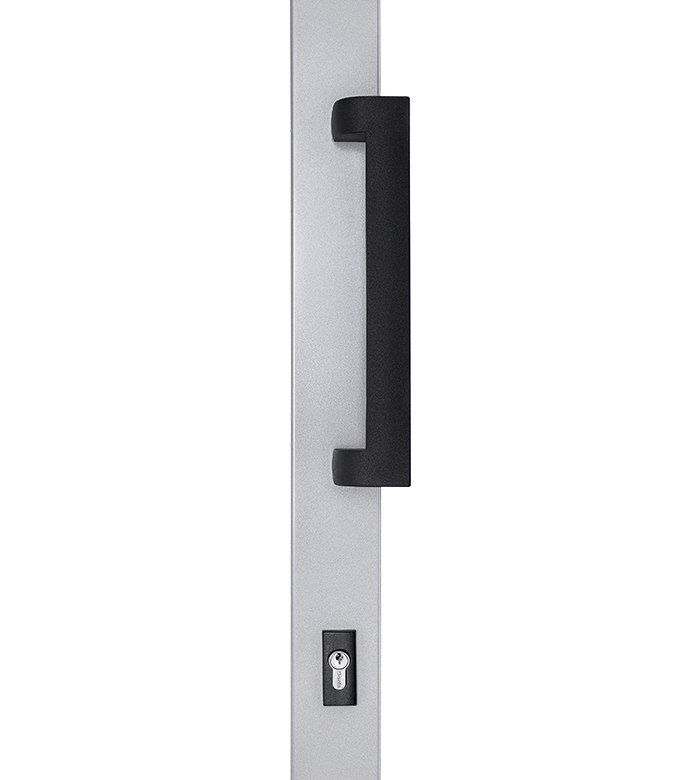

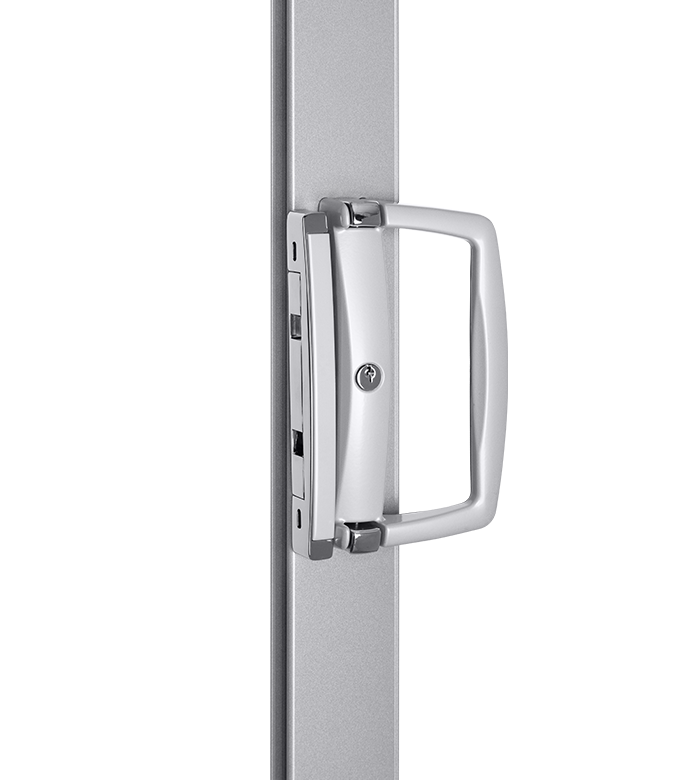

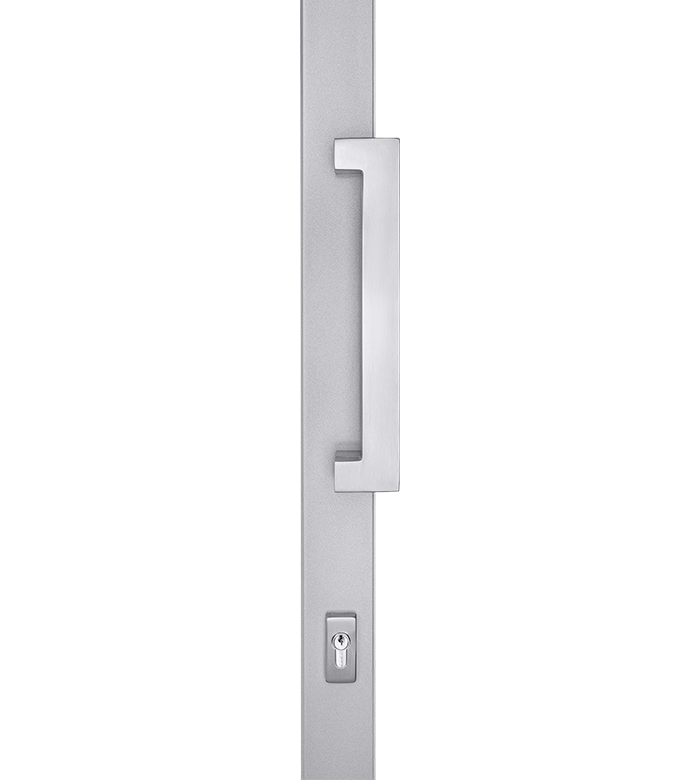

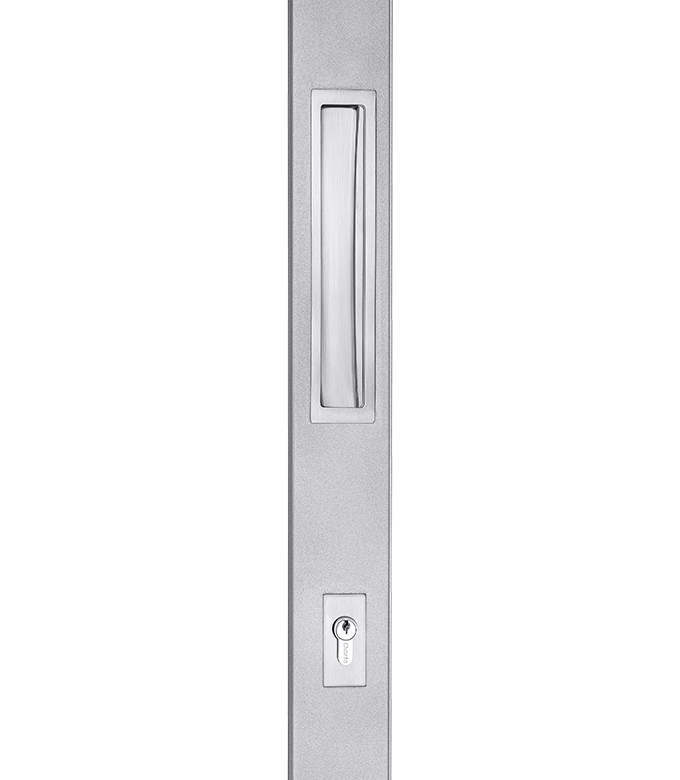

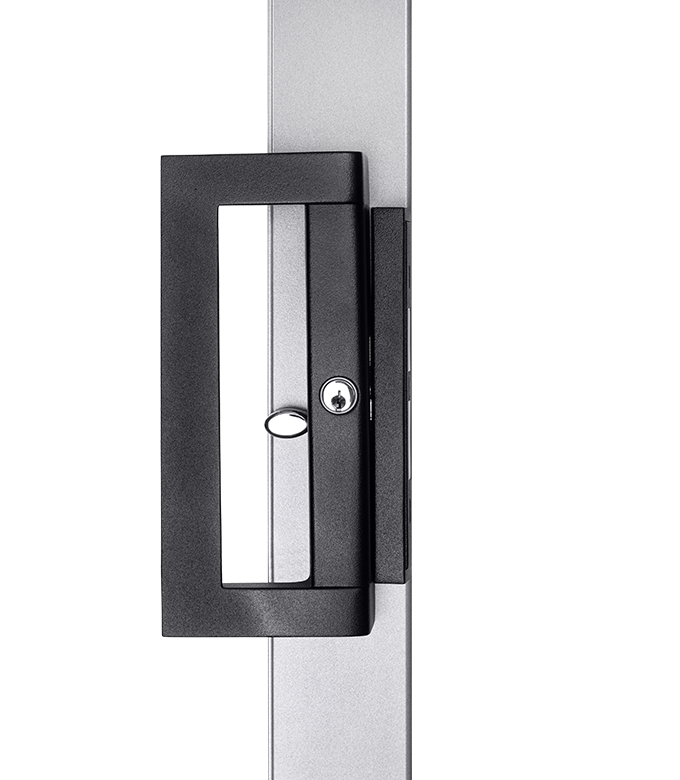

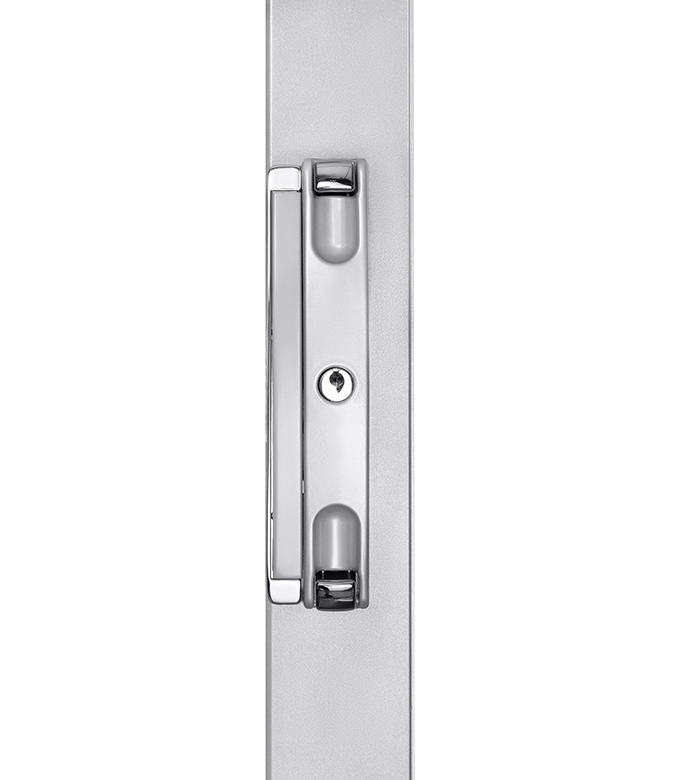

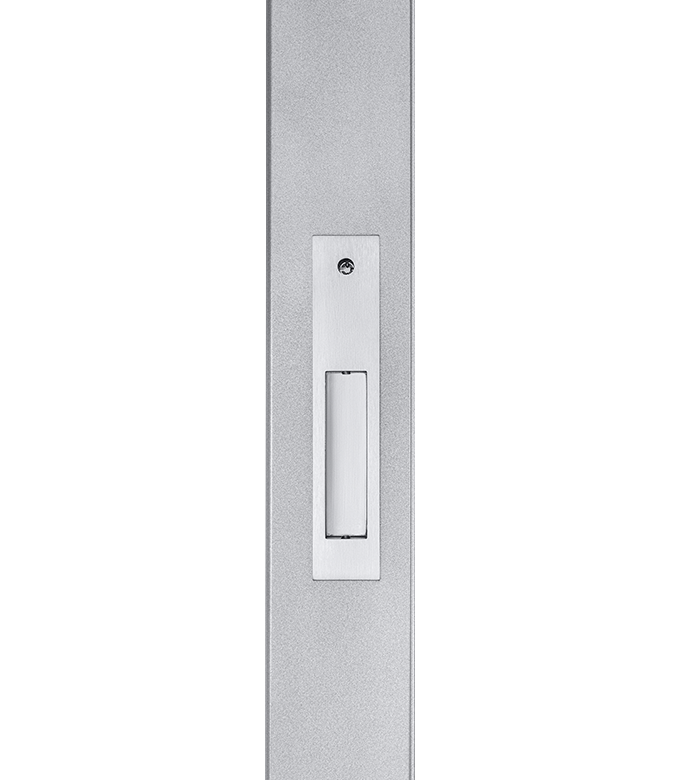

  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 704 SlideMASTER™ Sliding Door (Internal Sliding).

  • COMPLEMENTARY PRODUCTS

    AWS complementary product options designed for use with Series 704 SlideMASTER™ Sliding Door (Internal Sliding).

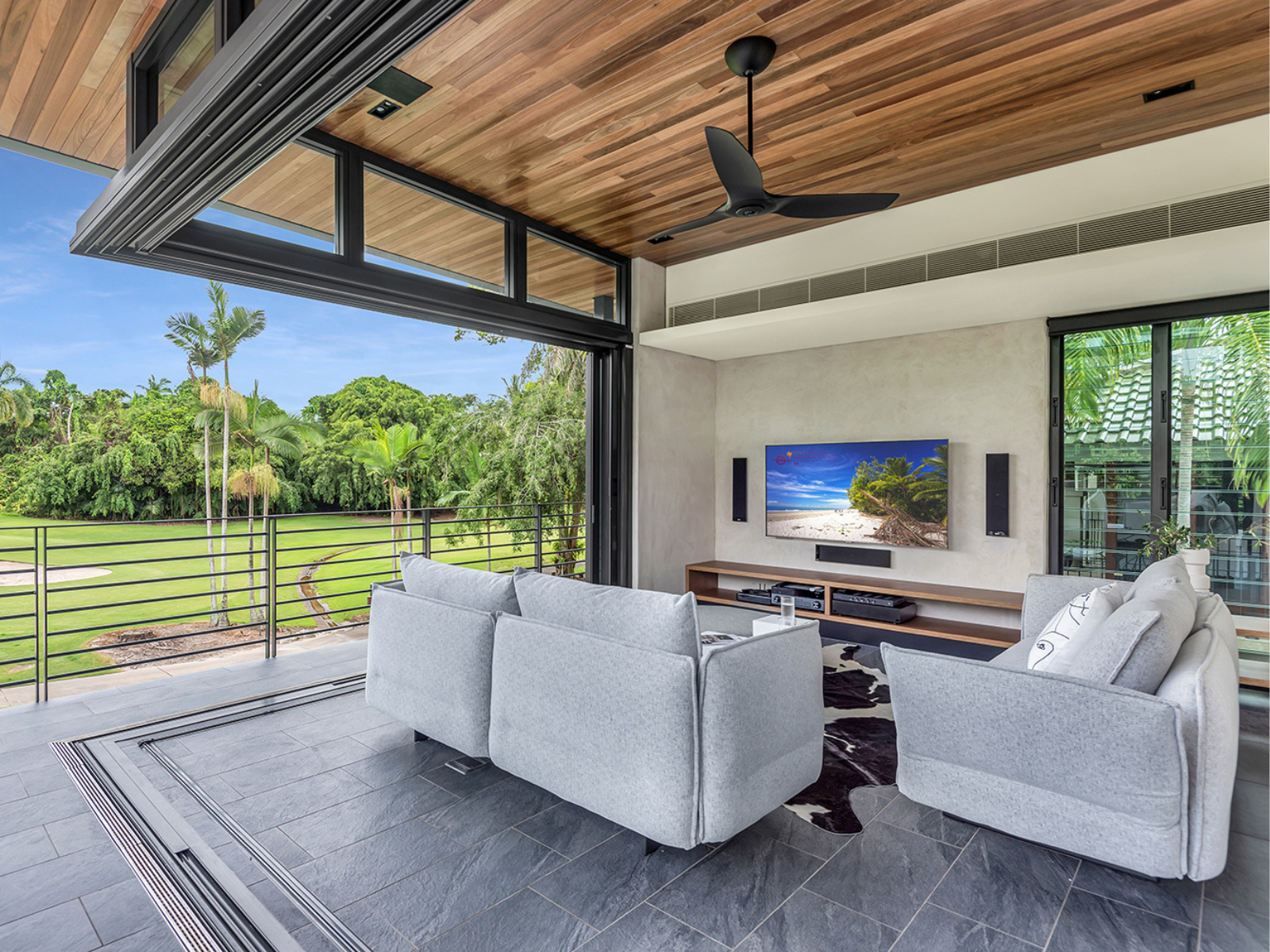

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 704.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 704 but differ in aesthetics and performance.
