ICON™ | Bi-fold Operator

Bi-fold Operator

Bi-fold Operator

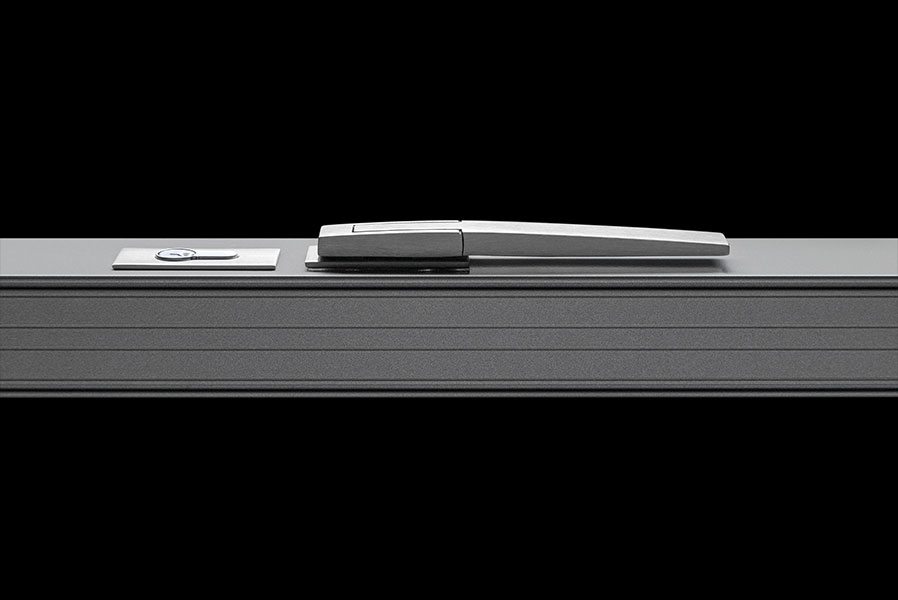

This swivel operator throws locking stainless steel bolts into the frame at the top and bottom of the door or window panel. The square corners of the handle are combined with radiused top and bottom surfaces to soften the aesthetics. Optional key-locking (separately installed) is available.  Available in 316-grade stainless steel only.


Key Features / Performance Characteristics

  • This swivel bi-fold operator throws locking bolts into the frame at top and bottom of the panel. Optional key-locking (separately installed) is available.
  • Having an operator handle located centrally on say a bi-fold door removes the need to bend down or stretch to reach flush bolts that might be located at the ends of the stiles.

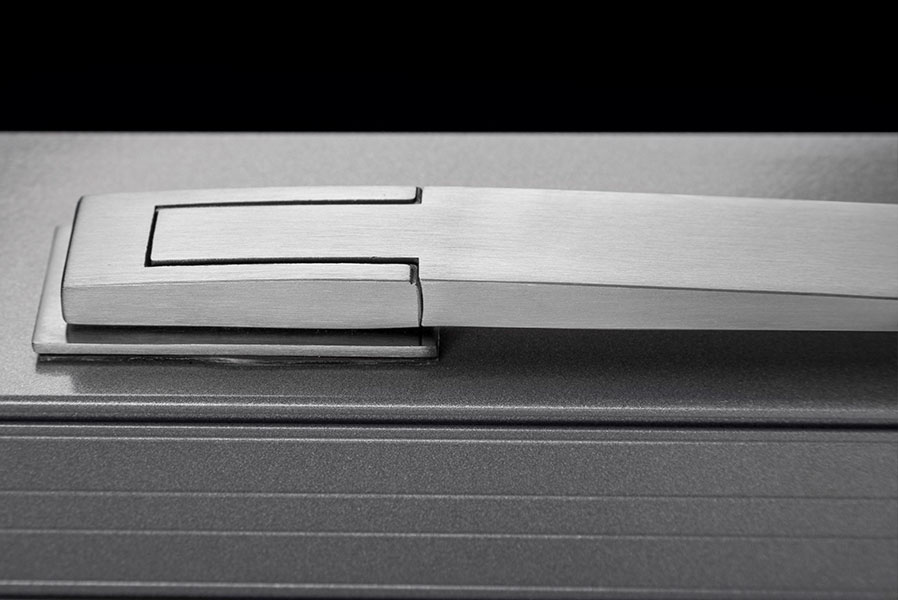

  • The ICON™ handle is rectangular and crisp with no visible fasteners when handle is in the closed position.
  • Furniture only available in 316 grade stainless steel.
  • Low line furniture ensures the handle won't strike adjoining panels when doors are in the open position.
  • Matching hinged door lever furniture.
