Architectural Series | Series 410

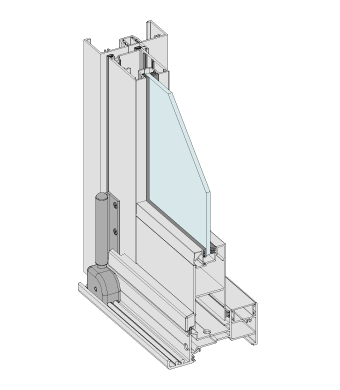

Architectural Series | Series 410FoldMASTER™ Bi-Fold Door (bottom rolling)

FoldMASTER™ Bi-Fold Door (bottom rolling)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.14 - 0.59
Uw Range 3.3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The Series 410 Bi-fold door is an exceptionally strong bi-fold system designed to accept the heavy duty AWS Series 50, 51 and 52 doors.
  • This bi-fold door can accommodate compliant bi-fold panels up to 3000mm high.
  • Rebated door stiles give a flush appearance when the two bi-fold doors meet and provide superior weather protection.
  • A variety of lever and lock options are available including proprietary multi-point and lever compression locking for added security.
  • Successfully tested for water resistance at 450Pa.
  • Bi-fold doors can be configured to incorporate single or double entry doors.
  • Custom door co-extruded Santoprene bulb seal for maximum weather performance.
  • Bi-fold door panels are supported on quad rollers running on heavy duty dual bottom rails.
  • As the bi-fold doors are supported at the sill (sill rollers) we can fit overlights. Overlights can be fixed glass or opening sashes.
  • Series 410 bi-fold doors can be fitted with Centor S1E Eco Screen

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 410 Bi-fold Door

    Series 410 Product Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Running Gear

      Heavy duty double bogey, bottom rolling running gear.
      Running Gear
    • Bi-parting

      Specially designed runners to inhibit clashing in a bi-parting configuration.
      Bi-parting
    • Door Beads

      A range of various door beads available including double glazed option.
      Door Beads
    • Hardware

      A full range of hardware available including multiple 4-point locking mechanisms.
      Hardware
    • Seals

      Multiple compression bulb seals ensure high weather resistance.
      Seals
    • Door Seals

      All door panels have heavy duty spigoting.
      Door Seals
